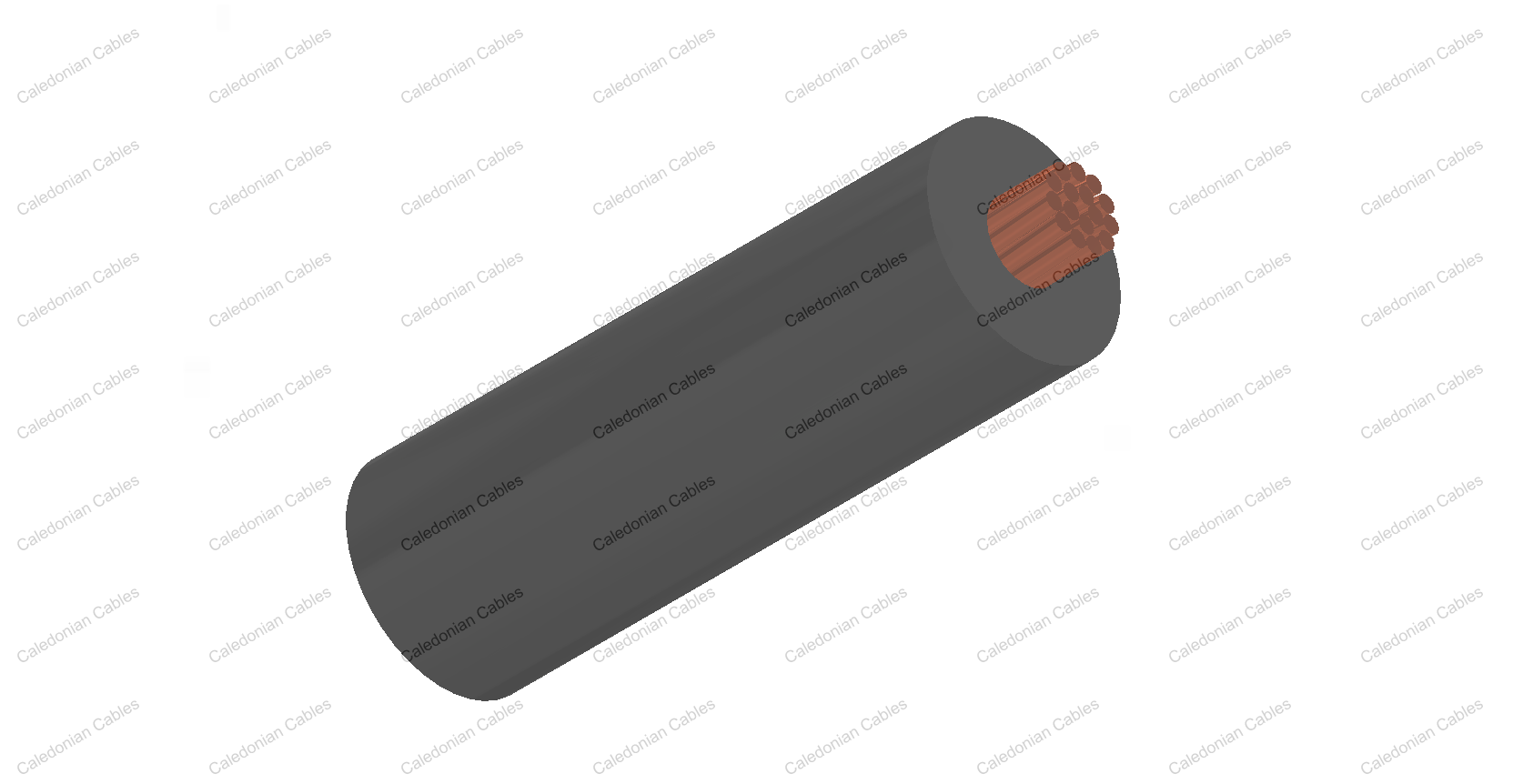

FIREROL Thin Wall Single Core Unsheathed Cables 300/500 V
EN 50306-2 (FRL-TW-05SU)
Application
-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
-Used in cable harnesses, switchboards and control panels, driver desks etc.

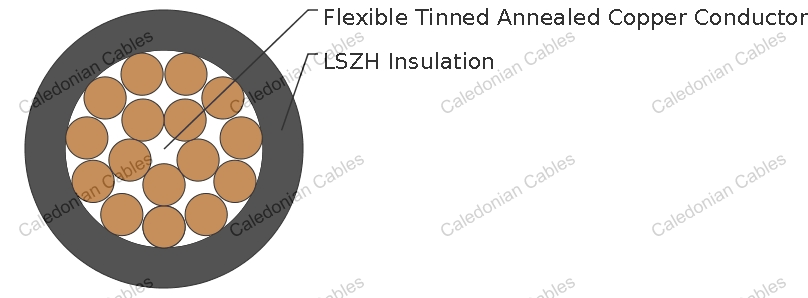

Construction
| Conductor |
Tinned annealed copper wires as defined in EN 50306-2 |
| Insulation |
LSZH special compound |
Electrical & Mechanical Properties
| Nominal Voltage |
300/500 V |
| Max. Conductor Temperature |
90°C /105°C (fixed installation) |
| Min. Permissible Ambient Temperature |
-25°C/-40°C (fixed installation) |
| Bending Radius |
3 x Overall Diameter (fixed installation);
5 x Overall Diameter (flexible installation)
|
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
| EN54454-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
| EN45545-2 |
Requirement for fire behavior of materials & components R15/R16 |
FRL-TW-05SU 300/500 V
| Nominal Cross-Sectional Area |
Number x Nominal Diameter of Wire |
Diameter |
Min. Mean Thickness of Insulation |
Overall Diameter |
Weight |
Conductor Resistance |
| Min. |
Max. |
Min. |
Max. |
20°C |
| mm² |
n x mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
| 0.5 |
19 x 0.18 |
0.80 |
0.95 |
0.18 |
1.15 |
1.45 |
7 |
40.1 |
| 0.75 |
37 x 0.16(a) |
1.00 |
1.15 |
0.18 |
1.35 |
1.65 |
8 |
26.7 |
| 1.0 |
37 x 0.18(a) |
1.10 |
1.30 |
0.18 |
1.45 |
1.80 |
10 |
20.0 |
| 1.5 |
37 x 0.23(a) |
1.45 |
1.65 |
0.22 |
1.95 |
2.30 |
20 |
13.7 |
| 2.5 |
37 x 0.30(a) |
1.85 |
2.15 |
0.28 |
2.50 |
2.85 |
25 |
8.21 |
(a) =This cable may be supplied in 19 strand conductor providing all product performance requirements in the specification are met.
