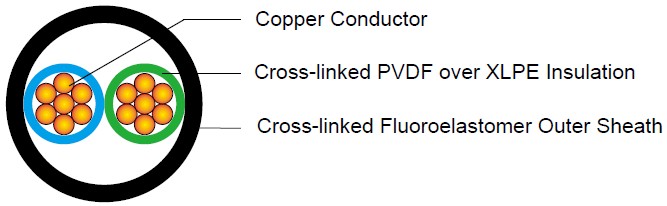

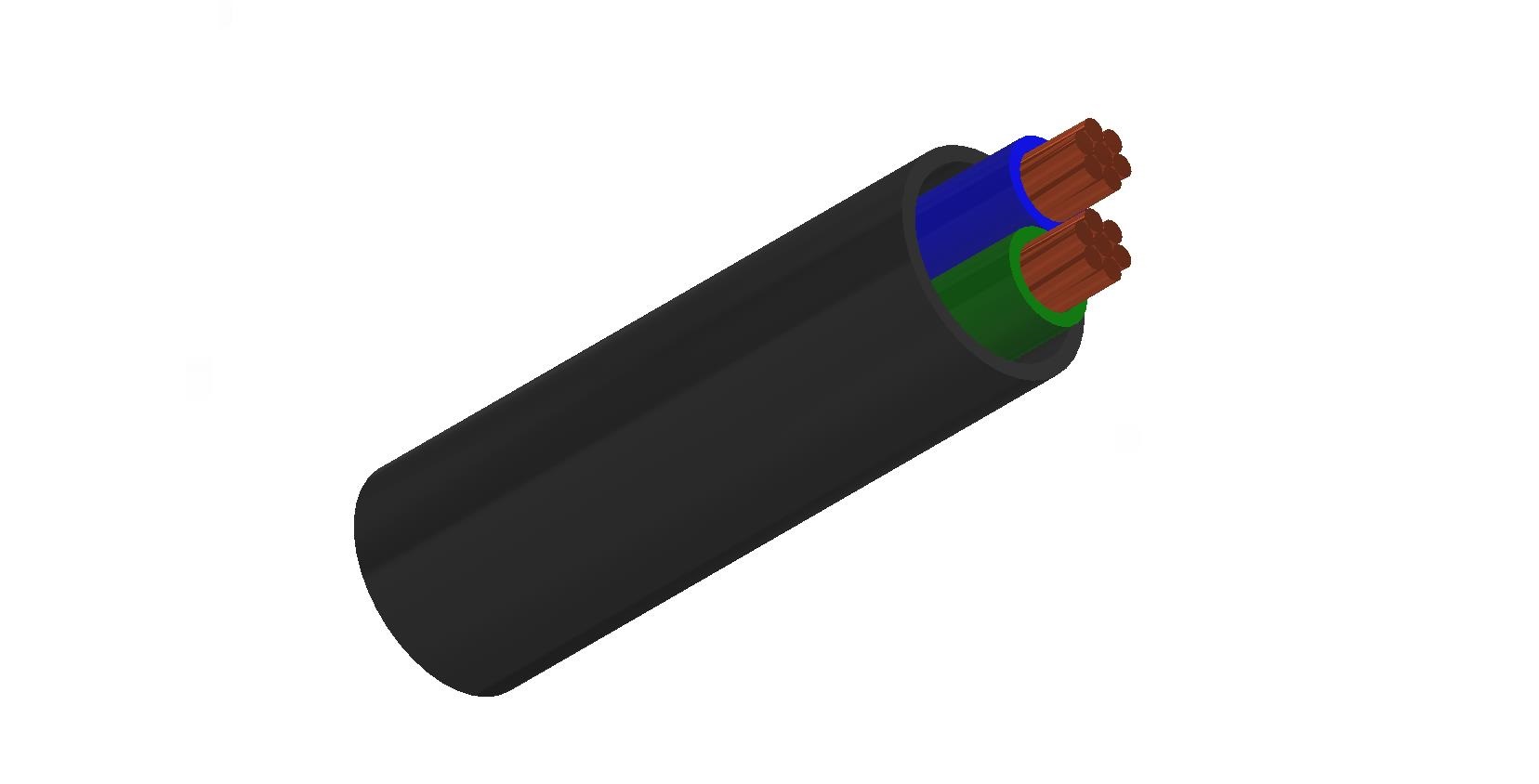

Unshielded Sensor Cable

APPLICATION

Smaller cables providing easier handling and space savings.

Compatible with wire-handling equipment used in harness shops.

Compatible with over-molding processes and materials used in sensor assembly.

STANDARDS

Basic design to EN50264

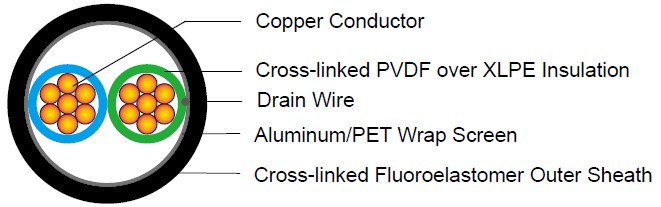

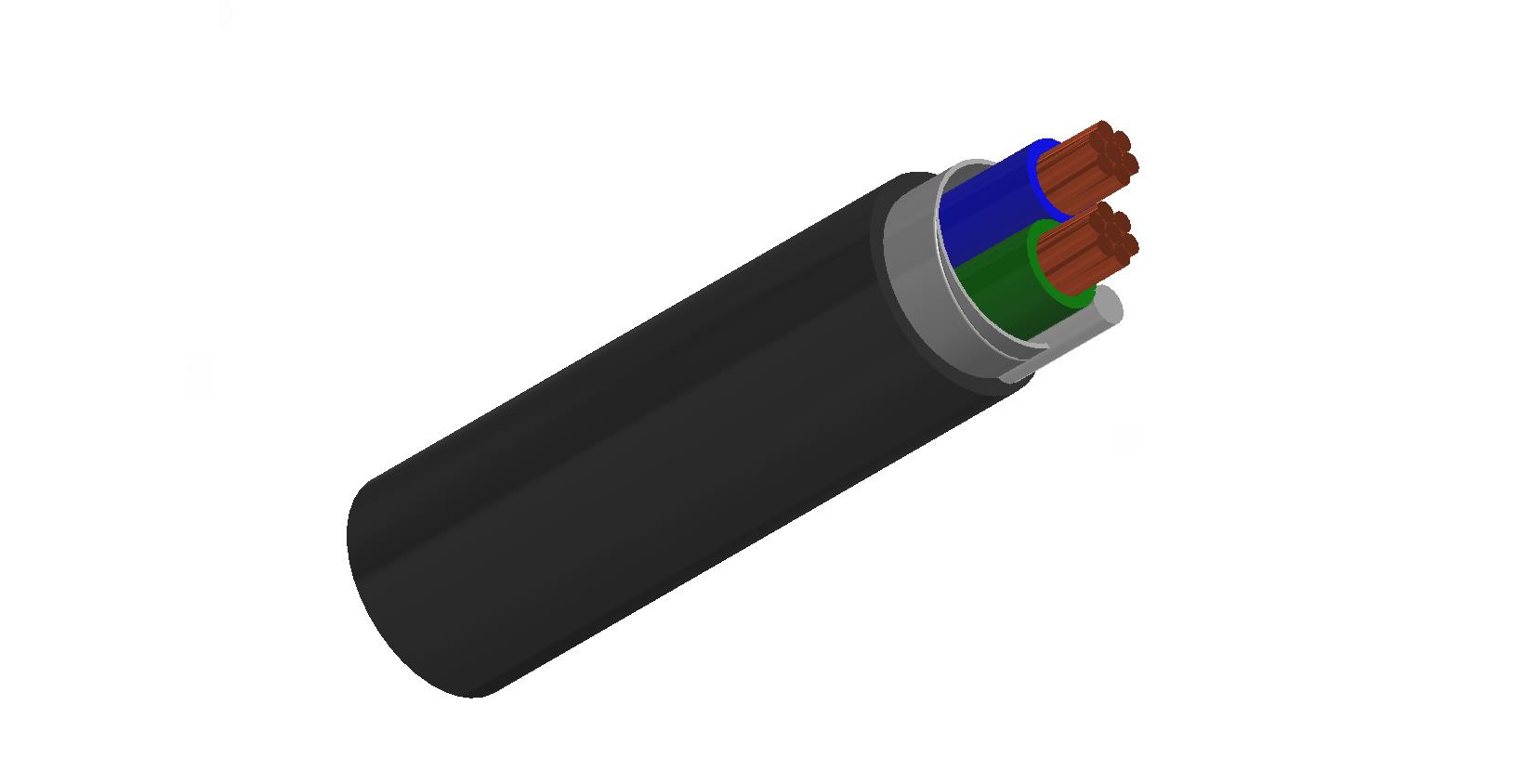

Shielded Sensor Cable Shielded Sensor Cable

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

CABLE CONSTRUCTION

Conductor : Tinned Copper /Bare Copper.

Insulation : Cross-linked PVDF over XLPE.

Sheath : Cross-linked Fluoroelastomer or Cross-linked Modified Polyolefin.

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour : Blue,Brown,Black,White,Green (Other colours can be offered upon request).

Sheath Colour : Black (Other colours can be offered upon request).

PHYSICAL AND THERMAL PROPERTIES

Operating temperature : -55°C - 200°C.

Short-term operating temperature :

240 hours @ 175°C (Cross-linked modified polyolefin sheath);

160 hours @ 250°C (Cross-linked modified polyolefin sheath);

6 hours @ 300°C (Cross-linked fluoroelastomer sheath);

Cold bend :

–40°C (Cross-linked modified polyolefin sheath);

–25°C (Cross-linked fluoroelastomer sheath).

Flammability :

70s (Cross-linked modified polyolefin sheath);

30s (Cross-linked fluoroelastomer sheath).

Abrasion (ISO 6722) :

> 500 cycles (Cross-linked modified polyolefin sheath);

> 1000 cycles (Cross-linked fluoroelastomer sheath).

Fluid resistance : As per ISO6722:2011 (E) Media groups 1 & 2.

Bending radius : 10xOD during installation; 5xOD fixed installed.

CONSTRUCTION PARAMETERS

Conductor Sensor Cable
No.of Cores × Cross Section Class of Conductor Min. Overall Diameter Max. Overall Diameter Weight
mm² mm mm kg/km
2×0.35 2 3.1 3.5 19.23
3×0.35 2 3.3 3.7 19.56
4×0.35 2 3.6 4.0 10.1
2×0.50 2 3.3 3.7 11.0
3×0.50 2 3.5 3.9 11.4
4×0.50 2 3.8 4.2 11.9
2×0.75 2 3.7 4.1 14.1
3×0.75 2 4.0 4.4 14.5
4×0.75 2 4.3 4.5 15.2
2×1.0 2 4.0 4.4 16.9
3×1.0 2 4.3 4.7 17.4
4×1.0 2 4.7 5.1 18.1
