Water Blocked Cable
Applications
These cables are water blocked, suitable for use as outboard installation cables for naval vessels.

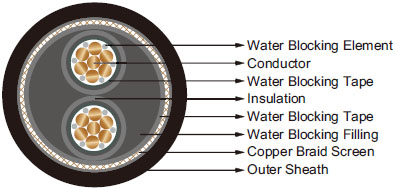

Construction
| Conductor |
Copper conductor, fine stranded. |
| Element |
Water-blocking element. |
| Separator |
Water-blocking tape. |
| Insulation |
Special elastomer. |
| Fillers |
Water-blocking filling. |
| Separator |
Water-blocking tape. |
| Screen |
Copper braid with tinned wires. |
| Sheath |
Cross linked halogen free flame retardant compound. |
Electrical Data
500V
| Number of Cores × Nominal Cross Section Area |
Maximum Transfer impedance |
| No. × mm^2 |
m Ω /m |
| 2×10 fix |
100 |
Dimension and Weight
500V
| Number of Cores × Nominal Cross Section Area |
Maximum Single Core Diameter |
Minimum Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Maximum Weight |
| No. × mm^2 |
mm |
mm |
mm |
mm |
kg/km |
| 2×10 fix |
5.9 |
2.0 |
20.3 |
21.5 |
650 |
