PVC/PUR Spiral Cable

Applications :

These PVC/PUR spiral cables are used as till feeder cable and they are ideally suited for use of high quality kitchen and housekeeping utensils, lighting,electrical tools, building industry, handing equipment, entertainment equipment etc. These cables have a high reset power, an excellent appearance and especially a long service life.

Construction :

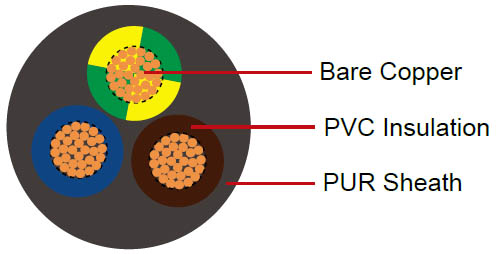

PVC/PUR spiral cable PVC/PUR spiral cable



Conductor : Stranded bare copper conductors according to VDE 0295 class 5
Cores Twisted
Core Insulation : PVC core insulation
Core Color Code : According to VDE 0293 or DIN 47100
Sheath : PUR outer sheath
Sheath Color : Black (Other colors and types are available on request)

Characteristics :

Temperature Rating : -5°C to +80°C
Voltage Rating : 300V/500V (up to 1 mm2)
  For type H07BQ-F 450/750 V (up to 1.5 mm2)
Elasticity Ratio : PVC/PUR black approx 1 : 4
Test Voltage : 2000 V, for type H07BQ-F 2500V

Dimensions and Weight :

AWG Cross-section Closed Spiral Lenght Cable Diameter Outer Diameter Copper Count Weight
  mm2 mm mm mm kg/km
18 2 x 0.75 500 6.50 23.00 77.80
18 2 x 0.75 1000 6.50 23.00 149.80
18 2 x 0.75 1400 6.50 23.00 207.40
18 2 x 0.75 2000 6.50 23.00 293.80
18 2 x 0.75 3000 6.50 23.00 437.80
18 3 x 0.75 500 7.10 25.20 116.70
18 3 x 0.75 1000 7.10 25.20 224.70
18 3 x 0.75 1400 7.10 25.20 311.10
18 3 x 0.75 2000 7.10 25.20 440.60
18 3 x 0.75 3000 7.10 25.20 656.60
18 4 x 0.75 500 7.90 28.80 156.60
18 4 x 0.75 1000 7.90 28.80 301.60
18 4 x 0.75 1400 7.90 28.80 417.60
18 4 x 0.75 2000 7.90 28.80 591.60
18 4 x 0.75 3000 7.90 28.80 881.60
18 5 x 0.75 500 8.60 31.20 194.40
18 5 x 0.75 1000 8.60 31.20 374.40
18 5 x 0.75 1400 8.60 31.20 518.40
18 5 x 0.75 2000 8.60 31.20 734.40
18 5 x 0.75 3000 8.60 31.20 1094.40
17 2 x 1.00 500 6.80 24.60 103.70
17 2 x 1.00 1000 6.80 24.60 199.70
17 2 x 1.00 1400 6.80 24.60 276.50
17 2 x 1.00 2000 6.80 24.60 391.70
17 2 x 1.00 3000 6.80 24.60 583.70
17 3 x 1.00 500 7.20 26.40 156.60
17 3 x 1.00 1000 7.20 26.40 301.60
17 3 x 1.00 1400 7.20 26.40 417.60
17 3 x 1.00 2000 7.20 26.40 591.60
17 3 x 1.00 3000 7.20 26.40 884.60
17 4 x 1.00 500 7.80 28.60 207.40
17 4 x 1.00 1000 7.80 28.60 399.40
17 4 x 1.00 1400 7.80 28.60 553.00
17 4 x 1.00 2000 7.80 28.60 783.40
17 4 x 1.00 3000 7.80 28.60 1167.40
17 5 x 1.00 500 9.00 32.00 259.20
17 5 x 1.00 1000 9.00 32.00 499.20
17 5 x 1.00 1400 9.00 32.00 691.20
17 5 x 1.00 2000 9.00 32.00 979.20
17 5 x 1.00 3000 9.00 32.00 1459.20
17 7 x 1.00 500 11.10 39.00 361.80
17 7 x 1.00 1000 11.10 39.00 696.80
17 7 x 1.00 1400 11.10 39.00 964.80
17 7 x 1.00 2000 11.10 39.00 1366.80
17 7 x 1.00 3000 11.10 39.00 2036.80
16 2 x 1.50 500 8.50 30.00 156.60
16 2 x 1.50 1000 8.50 30.00 301.60
16 2 x 1.50 1400 8.50 30.00 417.60
16 2 x 1.50 2000 8.50 30.00 591.60
16 2 x 1.50 3000 8.50 30.00 881.60
16 3 x 1.50 500 8.90 32.80 232.20
16 3 x 1.50 1000 8.90 32.80 447.20
16 3 x 1.50 1400 8.90 32.80 619.20
16 3 x 1.50 2000 8.90 32.80 877.20
16 3 x 1.50 3000 8.90 32.80 1307.20
16 5 x 1.50 500 10.90 38.80 388.80
16 5 x 1.50 1000 10.90 38.80 748.80
16 5 x 1.50 1400 10.90 38.80 1036.80
16 5 x 1.50 2000 10.90 38.80 1468.80
16 5 x 1.50 3000 10.90 38.80 2188.80
16 7 x 1.50 500 12.20 46.40 545.40
16 7 x 1.50 1000 12.20 46.40 1050.40
16 7 x 1.50 1400 12.20 46.40 1451.10
16 7 x 1.50 2000 12.20 46.40 2060.40
16 7 x 2.50 3000 12.20 46.40 3070.40
16 3 x 2.50 500 10.60 38.20 388.80
16 3 x 2.50 1000 10.60 38.20 748.80
16 3 x 2.50 1400 10.60 38.20 1036.80
16 3 x 2.50 2000 10.60 38.20 1468.80
16 3 x 2.50 3000 10.60 38.20 2188.80
