PVC/PVC Spiral Cable

Applications :

These PVC spiral cables are used in lighting industry, machine industry, power tools, construction industry, consumer electronics, mobile equipment etc. These cables offers excellent low mechanical and chemical resistance capabilities; middle elastic force; has good low-cost advantage. PVC cables have a high reset power, an excellent appearance and especially a long service life.

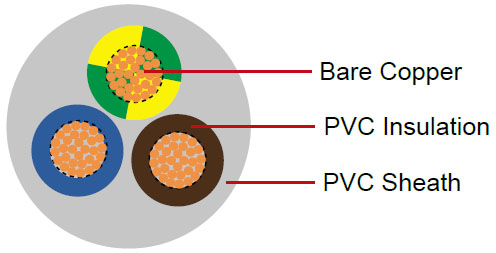

Construction :

PVC/PVC Spiral Cable PVC/PVC Spiral Cable



Conductor : Bare copper conductors according to DIN VDE 0295 and IEC 60228 class 5
Conductor Sizes : 0.5mm2 to 1.5mm2, 2 to 5 cores
Core Insulation : PVC core insulation
Core Color Code : According to VDE 0293 or DIN 47100
Sheath : PVC outer sheath
Sheath Color : Black, White or Grey

Characteristics :

Temperature Rating : -5°C to +70°C
Voltage Rating : H03VVH8-F 300/300V (up to 1 mm2)
  H05VVH8-F 300/500V (from 1.5 mm2)
Test Voltage : 2000 V

Dimensions and Weight :

AWG Cross-section Closed Spiral Lenght Cable Diameter Outer Diameter Copper Count Weight
  mm2 mm mm mm kg/km
18 2 x 0.75 200 6.20 21.40 34.60
18 2 x 0.75 400 6.20 21.40 63.40
18 2 x 0.75 600 6.20 21.40 92.20
18 2 x 0.75 800 6.20 21.40 121.00
18 2 x 0.75 1000 6.20 21.40 149.80
18 2 x 0.75 1200 6.20 21.40 178.60
18 2 x 0.75 1400 6.20 21.40 207.40
18 3 x 0.75 200 6.60 22.20 51.90
18 3 x 0.75 400 6.60 22.20 95.10
18 3 x 0.75 600 6.60 22.20 138.30
18 3 x 0.75 800 6.60 22.20 181.50
18 3 x 0.75 1000 6.60 22.20 224.70
18 3 x 0.75 1200 6.60 22.20 267.80
18 3 x 0.75 1400 6.60 22.20 311.10
17 2 x 1.00 200 6.60 22.20 43.20
17 2 x 1.00 400 6.60 22.20 65.30
17 2 x 1.00 600 6.60 22.20 122.80
17 2 x 1.00 800 6.60 22.20 161.30
17 2 x 1.00 1000 6.60 22.20 199.70
17 2 x 1.00 1200 6.60 22.20 238.10
17 2 x 1.00 1400 6.60 22.20 276.50
16 2 x 1.50 200 7.70 26.40 69.60
16 2 x 1.50 400 7.70 26.40 127.00
16 2 x 1.50 600 7.70 26.40 185.60
16 2 x 1.50 800 7.70 26.40 243.60
16 2 x 1.50 1000 7.70 26.40 301.60
16 2 x 1.50 1200 7.70 26.40 359.60
16 2 x 1.50 1400 7.70 26.40 417.60
16 3 x 1.50 200 8.50 29.00 103.20
16 3 x 1.50 400 8.50 29.00 189.20
16 3 x 1.50 600 8.50 29.00 275.20
16 3 x 1.50 800 8.50 29.00 361.20
16 3 x 1.50 1000 8.50 29.00 447.20
16 3 x 1.50 1200 8.50 29.00 533.20
16 3 x 1.50 1400 8.50 29.00 619.20
