50kV DC Screened Silicon Wire
APPLICATION
The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries, television receivers, transformers,high-voltage cables for electronic instruments, etc.
RATED VOLTAGE
50kV

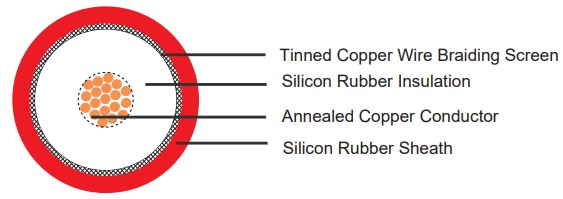

CONSTRUCTION
| Conductor | Annealed copper conductor, class 5. |
| Insulation | Silicon rubber. |
| Screen | Tinned copper wire braiding. |
| Sheath | Silicon rubber. |
COLOR CODE
Red, (other colours upon request).
PHYSICAL PROPERTIES
Operating Temperature: -45°C-180°C
DIMENSION DATA
| Part NO. | Conductor | Approx. Overall Diameter | ||
|---|---|---|---|---|
| No. of Core X Cross Section | No./Nominal Diameter of Strands | Nominal Diameter | ||
| mm² | No./mm | mm | mm | |
| HVDC-SCS-1C0.75 | 1x0.75 | 24/0.2 | 1.2 | 13 |
