AL Conductor EPR/XLEVA 0.6/1kV LSOH Power Cable 90°C
Application
These durable, high temperature resistant LSOH cables are designed for wind turbines and dedicated for fixed installation inside the tower.
Standards

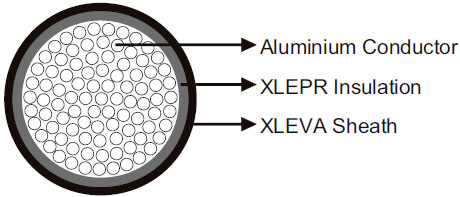

Construction
| Conductor |
Aluminium conductor, class 2 according to IEC 60228/EN 60228 |
| Insulation |
Special cross-linked halogen free rubber EPR for high temperatures |
| Sheath |
Special cross-linked synthetic halogen free rubber EM8 (XLEVA). CPE can be offered upon request. |
Technical Data
| Rated Voltage U0/U (Um) |
0.6/1kV |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
6×OD |
| Maximum Permissible Tensile Load |
15 N/mm^2 |
| Short-circuit Temperature |
250℃ |
| Flame Retardant |
IEC 60332-1/ IEC 60332-3 |
| Halogen Free |
IEC 60754 |
| Corrosive Gases |
IEC 60754 |
| Smoke Density |
IEC 61034 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
| Water Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×150 |
22.5 |
640 |
| 1×185 |
25.0 |
770 |
| 1×240 |
27.8 |
980 |
| 1×300 |
30.5 |
1210 |
| 1×400 |
35.5 |
1550 |
