AL Conductor HEPR/PO 0.6/1kV LSOH Power Cable 90°C
Application
These cables are designed for main power lines of permanent routing in wind tower installation.
Standards

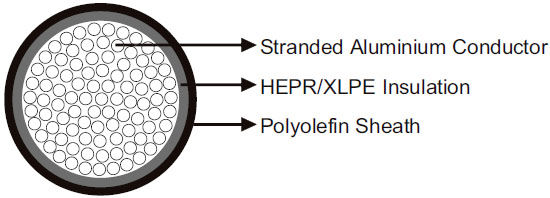

Construction
| Conductor |
Aluminium conductor, class 2 to IEC 60228 |
| Insulation |
HEPR. XLPE can be offered upon request |
| Inner Covering |
Rubber compound type GM1b |
| Sheath |
Compound based on polyolefin, type HXM1 |
Technical Data
| Rated Voltage U0/U (Um) |
0.6/1kV |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
4×OD |
| Short-circuit Temperature |
250℃ |
| Flame Retardant |
IEC 60332-1 |
| Halogen Free |
IEC 60754 |
| Gases Corrosively |
DIN EN 50267-2/ IEC 60754 |
| Smoke Density |
IEC 61034 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×50 |
13.0 |
266 |
| 1×70 |
15.0 |
352 |
| 1×95 |
16.5 |
450 |
| 1×120 |
18.0 |
556 |
| 1×150 |
20.0 |
686 |
| 1×185 |
22.5 |
842 |
| 1×240 |
26.0 |
1076 |
| 1×300 |
29.0 |
1299 |
| 1×400 |
32.5 |
1680 |
| 3×150 |
44.0 |
2756 |
| 4×150 |
49.0 |
3367 |
