DLO 2kV Torsion Resistant Cable to UL 44
Application
These cables are used for main power layout from the nacelle to the base of the wind tower.
Standards
- UL 44
- ICEA S-68-516/NEMA WC-8

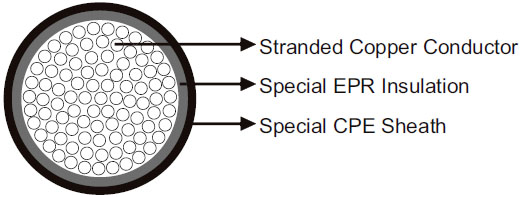

Construction
| Conductor |
Stranded tinned copper according to ASTM B-172/ ASTM B-33. |
| Insulation |
Special EPR. XLPO can be offered upon request. |
| Sheath |
Special CPE. XLPO can be offered upon request. |
Technical Data
| Rated Voltage U0/U (Um) |
2000V |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
flexing: 6×OD; fixed: 4×OD |
| Torsion Application |
+/-180°/m |
| Flame Retardant |
IEEE 1202/CSA FT4 FT1 |
| Oil Resistant |
Yes |
| UV Resistant |
Yes |
| Cold Resistant |
CSA C 22.2 |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×14 |
5.9 |
37 |
| 1×12 |
6.3 |
69 |
| 1×10 |
7.2 |
100 |
| 1×8 |
8.2 |
142 |
| 1×6 |
10.1 |
200 |
| 1×4 |
11.5 |
286 |
| 1×2 |
12.6 |
370 |
| 1×1 |
16.1 |
637 |
| 1×1/0 |
17.5 |
715 |
| 1×2/0 |
18.5 |
830 |
| 1×3/0 |
20.2 |
1104 |
| 1×4/0 |
21.7 |
1298 |
| 1×262 |
24.8 |
1590 |
| 1×313 |
26.4 |
1872 |
| 1×373 |
28.2 |
2176 |
| 1×444 |
30.0 |
2570 |
| 1×535 |
32.2 |
3046 |
| 1×646 |
34.8 |
3600 |
| 1×777 |
37.0 |
4290 |
| 1×929 |
39.5 |
5144 |
| 1×1111 |
44.4 |
6070 |
