H05BQ-F/H07BQ-F

Application

These cables are used as power cables for high mechanical stresses, in particular for abrasion and grinding stresses, suitable for use in dry, damp and wet rooms and outdoors, for connecting electric tools and lamps also on construction sites.

Standards

  • HD 22.10 S1

Construction

H05BQ-F/H07BQ-F

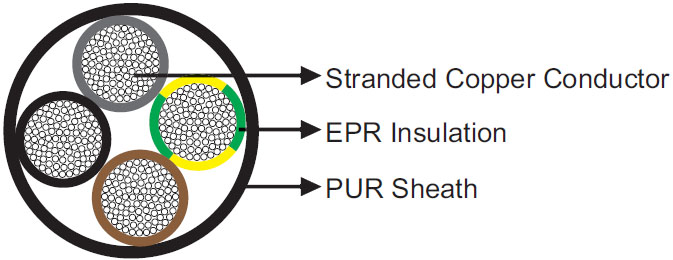

Conductor Stranded bare copper, class 5 according to HD 383
Insulation EPR compound type EI6
Sheath Polyurethane

Technical Data

Rated Voltage U0/U (Um) 300/500V (H05BQ-F);450/750V (H07BQ-F)
Operating Temperatures -40℃~+90℃
Minimum Bending Radius fixed: 4×OD; flexing: 6×OD

Dimensions and Weight

H05BQ-F

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
2×0.75 6.6 50
3G0.75 7.2 60
4G0.75 7.8 80
5G0.75 8.8 100
2×1 7.1 60
3G1 7.5 70
4G1 8.2 90
5G1 9.2 110

H07BQ-F

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
2×1.5 8.7 90
3G1.5 9.2 110
4G1.5 10.3 130
5G1.5 11.3 170
2×2.5 10.3 120
3G2.5 11.0 160
4G2.5 12.3 200
5G2.5 13.6 250
2×4 12.2 170
3G4 12.9 230
4G4 14.5 280
5G4 16.0 360
2×6 13.5 220
3G6 14.6 300
4G6 16.2 380
5G6 17.9 470
2×10 17.8 380
3G10 19.1 520
4G10 21.1 650
5G10 23.2 800
2×16 20.4 540
3G16 22.1 750
4G16 24.2 950
5G16 26.9 1160

G: with green-yellow earth core      ×: without green-yellow earth core
