H07BN4-F & UL/CSA 1000V 90°C Torsion Resistant Cable

Application

These cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines.

Standards

  • HD 22.12
  • UL/CSA 22.2
  • UL 758

Construction

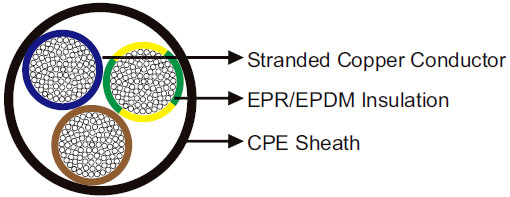

H07BN4-F & UL/CSA 1000V 90°C Torsion Resistant Cable
Conductor Flexible annealed bare copper, class 5 according to IEC/EN 60228.
Insulation Special cross-linked EI7 rubber for high temperatures (EPDM class 28). Special thermoset EPR for high temperature can be offered upon request.
Sheath High mechanical performance special cross-linked EM7 rubber (CPE class 42). Special thermoset CPE improved for low temperature behaviour (-40°C) can be offered upon request.

Technical Data

Rated Voltage U0/U (Um) 1000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius flexing: 6×OD; fixed: 4×OD
Torsion Application +/-150°/m
Maximum Permissible Tensile Load 15 N/mm^2
Short-circuit Temperature 250℃
Flame Retardant EN 50265-1/EN 50265-2-1/IEC 60332-1
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes
Water Resistant Yes
Impact Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×120(4/0 AWG) 25.5 1540
1×150(250MCM) 28.8 1810
1×185(350MCM) 31.4 2210
1×240(450MCM) 33.8 2750
1×300(550MCM) 37.7 3520
1×400(750MCM) 41.4 4510
1×50(1 AWG) 18.7 730
1×95(3/0 AWG) 23.0 1220
3×120(4/0 AWG) 56.0 5200
3×150(250MCM) 61.5 6400
3×240(450MCM) 72.0 9780
3×25(4 AWG) 30.0 1420
3×35(2 AWG) 35.3 1850
3×50(1 AWG) 39.8 2480
3×70(2/0 AWG) 43.8 3180
3×95(3/0 AWG) 49.0 4260
4G50(1 AWG) 42.5 3150
4G70(2/0 AWG) 48.2 4240
(3/0 AWG) 53.5 5480

G: with green-yellow earth core ×: without green-yellow earth core
