H07BN4-F & UL/CSA 600V 90°C Torsion Resistant Cable
Application
These cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines.
Standards
- HD 22.12
- UL/CSA 22.2
- UL 758

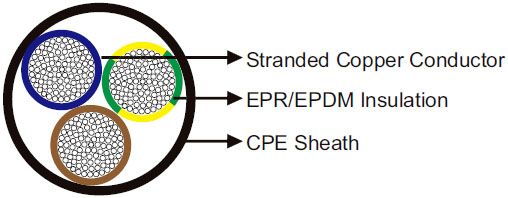

Construction
| Conductor |
Flexible annealed bare copper, class 5 according to IEC/EN 60228. |
| Insulation |
Special cross-linked EI7 rubber for high temperatures (EPDM class 28). Special thermoset EPR for high temperature can be offered upon request. |
| Sheath |
High mechanical performance special cross-linked EM7 rubber (CPE class 42). Special thermoset CPE improved for low temperature behaviour (-40°C) can be offered upon request. |
Technical Data
| Rated Voltage U0/U (Um) |
600V |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
flexing: 6×OD; fixed: 4×OD |
| Torsion Application |
+/-150°/m |
| Maximum Permissible Tensile Load |
15 N/mm^2 |
| Short-circuit Temperature |
250℃ |
| Flame Retardant |
EN 50265-1/EN 50265-2-1/IEC 60332-1 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
| Water Resistant |
Yes |
| Impact Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×120(4/0AWG) |
25.5 |
1540 |
| 1×150(250MCM) |
28.8 |
1810 |
| 1×185(350MCM) |
31.4 |
2210 |
| 1×240(450MCM) |
33.8 |
2750 |
| 1×300(550MCM) |
37.7 |
3520 |
| 1×400(750MCM) |
41.4 |
4510 |
| 1×50(1 AWG) |
18.7 |
730 |
| 1×95(3/0 AWG) |
23.0 |
1220 |
| 3×120(4/0 AWG) |
56.0 |
5200 |
| 3×150(250MCM) |
61.5 |
6400 |
| 3×240(450MCM) |
72.0 |
9780 |
| 3×25(4 AWG) |
30.0 |
1420 |
| 3×35(2 AWG) |
35.3 |
1850 |
| 3×50(1 AWG) |
39.8 |
2480 |
| 3×70(2/0 AWG) |
43.8 |
3180 |
| 3×95(3/0 AWG) |
49.0 |
4260 |
| 4G50(1 AWG) |
42.5 |
3150 |
| 4G70(2/0 AWG) |
48.2 |
4240 |
| 4G95(3/0 AWG) |
53.5 |
5480 |
G: with green-yellow earth core ×: without green-yellow earth core
