High Temperature Resistant Cables +145°C 0.6/1kV

Application

These cables are specifically designed for connecting generator output of thermal class (B),motors, transformers and relays requiring for high temperature resistant.

Standards

  • IEC 60502

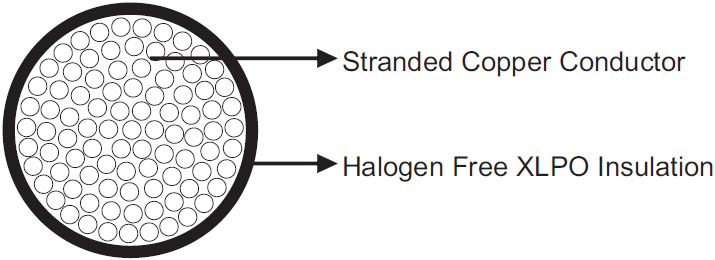

Construction

High Temperature Resistant Cables
Conductor Stranded tinned copper wires, class 5/class 6 according to DIN VDE 0295/ IEC 60228
Insulation Halogen-free XLPO

Technical Data

Rated Voltage U0/U(Um) 0.6/1kV
Operating Temperatures -55℃~+145℃
Minimum Bending Radius 6×OD
Flame Retardant IEC 60332-3
Halogen Free IEC 60754
Corrosive Gases IEC 60754
Smoke Density IEC 61034
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes
Cold Resistant CSA C 22.2

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×6 5.4 70
1×10 6.8 119
1×16 8.5 180
1×25 10.3 270
1×35 11.8 373
1×50 13.9 528
1×70 16.0 728
1×95 18.5 966
1×120 20.5 1230
1×150 22.1 1530
1×185 24.8 1880
1×240 27.7 2500
1×300 37.8 3910
1×400 38.7 4870
