LSOH Screened Torsion Resistant Loop Cable 0.6/1kV
Application
These cables are designed for special application condition in wind turbines, special for medium mechanical stress and for operation under permanent influence of seawater and usage outdoor.
Standards
- IEC 60502
- EN 50363
- HD 22.13

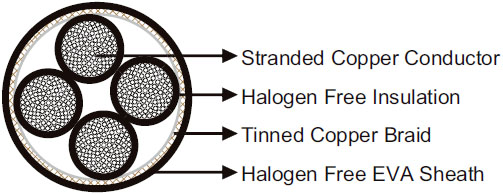

Construction
| Conductor |
Stranded bare copper conductor |
| Insulation |
Extruded halogen free rubber compound EI8 |
| Screen |
Tinned wire copper braid |
| Sheath |
Extruded halogen free EVA compound EM8 |
Technical Data
| Rated Voltage U0/U (Um) |
0.6/1kV |
| Operating Temperatures |
flexing: -35℃~+90℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius |
flexing: 6×OD; fixed: 4×OD |
| Torsion Application |
± 100 °/m |
| Maximum Permissible Tensile Load |
15 N/mm^2 (in operation) |
| Short-circuit Temperature |
250℃ |
| Flame Retardant |
EN 50265-2-1 |
| Halogen Free |
IEC 60754 |
| Smoke Density |
IEC 61034 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| Silicone Free |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 25×0.75 |
18.0 |
500 |
| 25×1 |
20.0 |
550 |
| 4×1.5 |
10.0 |
150 |
| 12×1.5 |
16.0 |
400 |
| 32×1.5 |
26.0 |
950 |
| 42×1.5 |
35.0 |
1700 |
| 12×2.5 |
23.0 |
620 |
| 5×2.5 |
15.0 |
300 |
| 4×4 |
13.5 |
300 |
