S-3GSHXOEU HFFR 0.6/1 kV & UL 1000V 90°C

Application

These cables are designed for use at medium mechanical stresses in wind turbines.

Standards

  • UL 758
  • DIN VDE 0250
  • DIN VED 0282

Construction

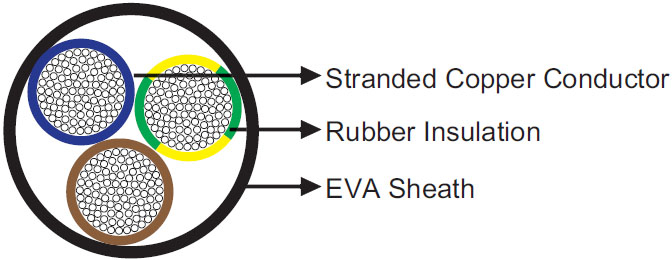

S-3GSHXOEU HFFR 0.6/1 kV & UL 1000V 90°C
Conductor Stranded bare copper, fine wire class 5 according to IEC 60228 / DIN EN 60228
Insulation Rubber compound
Sheath EVA

Technical Data

Rated Voltage Uo/U (Um) 600/1000V (DIN VDE 0250)/1000V (AWM 758)
Operating Temperatures -40℃~+90℃
Minimum Bending Radius flexing: 6×OD; fixed: 4×OD
Short-circuit Temperature 250℃
Flame Retardant IEC 60332-1
Halogen Free EN 50267-2-1/IEC 60754
Corrosive Gases DIN EN 50267-2
Smoke Density IEC 61034
Oil Resistant Yes
Cooling Fluid Resistance Yes
Ozone Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
3×1.5 10.3 142
4×1.5 11.3 182
5×1.5 12.5 224
3×2.5 12.5 217
4×2.5 13.0 265
5×2.5 14.5 326
3×4 14.5 313
4×4 15.5 383
3×6 15.5 407
4×6 17.5 514
2×10 18.5 560
3×10 20.0 688
4×10 22.0 642
5×10 25.5 1095
3×16 23.0 946
4×16 26.0 1242
5×16 28.5 1501
1×25 13.0 364
3×25 28.0 1416
4×25 30.5 1746
5×25 34.0 2173
1×35 15.0 491
3×35 31.5 1894
4×35 34.5 2338
5×35 38.0 2849
1×50 17.0 682
3×50 36.0 2564
4×50 40.0 3236
5×50 44.0 3941
1×70 19.5 936
3×70 41.5 3466
4×70 46.5 4504
5×70 51.0 5515
1×95 21.5 1209
3×95 47.5 4580
1×120 24.0 1487
3×120 51.0 5517
