UL/CSA 1000V PVC/PVC Screened Torsion Resistant Cable 90°C

Application

These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.

Standards

  • UL 758

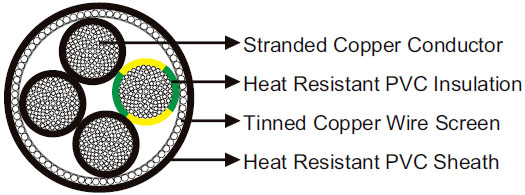

Construction

UL/CSA 1000V PVC/PVC Screened Torsion Resistant Cable 90°C
Conductor Stranded bare copper according to DIN VDE 0295.
Insulation Special heat resistant PVC.
Screen Tinned copper wire wrapped.
Sheath Special heat resistant PVC.

Technical Data

Rated Voltage U0/U (Um) 1000V
Operating Temperatures flexing: -35℃~+90℃; fixed: -40℃~+90℃
Minimum Bending Radius 10×OD
Torsion Application +/-90°/m
Flame Retardant FT1
Oil Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction AWG /MCM Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 - mm kg/km
2×2×0.25 24 8.9 90
4×2×0.25 24 9.9 115
5×2×0.25 24 11.1 130
4×0.34 22 7.7 91
2×2×0.34 22 9.6 110
4×2×0.34 22 11.0 130
4×0.5 20 8.0 105
6×0.5 20 9.2 130
10×0.5 20 11.4 170
12×0.5 20 11.7 220
2×2×0.5 20 9.8 115
4×2×0.5 20 11.3 150
3×0.75 19 7.7 97
4×0.75 19 8.3 122
5×0.75 19 9.0 145
7×0.75 19 9.7 200
8×0.75 19 10.7 220
12×0.75 19 12.2 258
18×0.75 19 14.4 400
25×0.75 19 17.8 552
32×0.75 19 18.8 610
40×0.75 19 21.2 805
41×0.75 19 21.2 795
50×0.75 19 23.5 900
2×2×0.75 19 10.4 130
3×2×0.75 19 11.5 172
4×2×0.75 19 12.7 211
8×2×0.75 19 17.1 410
12×2×0.75 19 17.6 520
4×1.0 18 8.7 110
6×1.0 18 10.2 150
8×1.0 18 11.7 210
12×1.0 18 13.3 280
2×1.5 16 6.8 86
3×1.5 16 8.8 133
4×1.5 16 9.4 159
5×1.5 16 10.3 195
7×1.5 16 11.9 247
12×1.5 16 14.7 410
2×2×1.5 16 12.1 180
3×2×1.5 16 14.0 210
4×2×1.5 16 14.6 235
3×2.5 14 10.4 210
4×2.5 14 10.6 264
5×2.5 14 12.3 288
7×2.5 14 14.8 411
12×2.5 14 18.2 638
5×4 12 13.6 382
7×4 12 16.3 582
12×4 12 20.0 806
5×6 10 17.4 640
4×10 8 17.8 727
5×10 8 19.8 935
4×16 6 21.1 1072
5×16 6 26.2 1330
4×25 4 26.0 1664
5×25 4 28.6 2014
4×50 1 37.0 3200
1×70 2/0 19.8 950
1×95 3/0 22.5 1280
1×120 4/0 25.0 1570
1×150 300 24.9 2000
1×185 350 27.8 2340
1×240 500 33.0 3150
1×300 600 39.0 3920
1×400 750 43.0 5100
1×500 1000 46.5 6200
