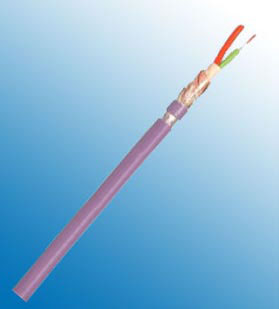

Profibus L2 Torsion + Festoon



Applications :

  • The series TORSION and FESTOON are used to interconnect Profibus BUS components.

    This BUS system is a very economical solution for the field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The lines described here are designed torsionable or hanging movable construction. Areas such as robot applications and/or garland suspension are easily realized.

Construction :

  • Type/Area of Application Torsion Applications Mobile Use
    Cable Construction 1x2x0.64 mm (stranded) 1x2x0.65 mm (stranded)
    Inner Conductor Diameter Copper, bare (AWG 23/19) Copper, bare (AWG 24/19)
    Conductor Insulation Foam-skin-PE Cell PE
    Conductor Colors red, green red, green
    Stranding Element 2 conductors + 2 fillers stranded together 2 conductors + 2 fillers stranded together
    Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
    Shielding Polyester foil, Copper bare Polyester foil, aluminum-lined
    Total Shielding Copper shifting, tinned Copper braid, tinned
    Outer Jacket Material PUR PVC
    Outer Diameter 8.0 mm ± 0.3 mm 8.0 mm ± 0.3 mm
    Outer Jacket Color Violet Green

Electrical Data :

  • CharacteristicImpedance@3-20Hz 150 Ω ± 10 Ω
    Conductor Resistance 66.5 Ohm/km max.
    Insulation Resistance 1.00 GOhm x km min.
    Mutual Capacitance@1KHz 30.0 nF/km nom.
    Working Voltage Max: 250 V
    Test Voltage 1.5 KV
    Attenuation 9.6 kHz < 3.0 dB/km
    38.4 kHz < 5.0 dB/km
    4.0 MHz < 25.0 dB/km
    16.0 MHz < 51.0 dB/km

Technical Data :

  • Weight approximately 91.0 kg/km approximately 64.0 kg/km
    Min. Bending Radius (Laying) 12.5 x OD mm 5 x OD mm
    Operating Temp.Range, min. - 5 °C -40 °C
    Operating Temp.Range, max. +60 °C +60 °C
