ISA/SP-50 Type B



Applications :

  • Foundation™ Field bus is used in intrinsically area,especially in the field of Process Automation.

    A single pair 22AWG Bi-Directional digital Fieldbus cable for type B applications (31.25 KBits/sec) are available in PVC, LSHF and SWA versions.

    Anti-termite and antivermin foundation fieldbus cable is also available.

Construction :

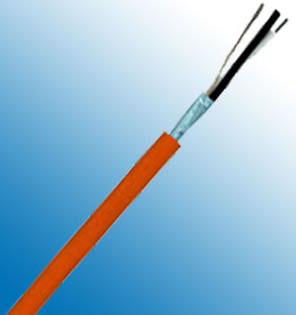

  • Type Foundation Fieldbus ISA/SP-50 Type B
    Inner Conductor Tinned copper conductors 22AWG 0.34mm²
    Conductor Insulation Polyolefin/Foamed PE with skin PE
    Stranding Element -
    Shielding Aluminium /polyester foil
    Drain Wire (22AWG) tinned copper
    Outer Jacket Material PVC
    Core Identification White & Black
    Sheath Colour Orange

Electrical Data :

  • Characteristic Impedance@31.25Hz 130 Ω±20 Ω
    Conductor resistance 56.0Ohm/km @ 20°C
    Working Voltage 300V
    Test Voltage 1.5KV
    Nominal attenuation 39 MHz <3 dB/km

Technical Data :

  • Weight: approximately 53 kg/km/ 213 kg/km(SWA)
    Min. Bending Radius (Laying) 15 x OD mm
    Operating Temp.Range, min. - 25 °C
    Operating Temp.Range, max. +80 °C
