2192Y to BS 6500

Application and Description

These cable types are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. These cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. 2192Y is equivalent to harmonized code H03VVH2-F.

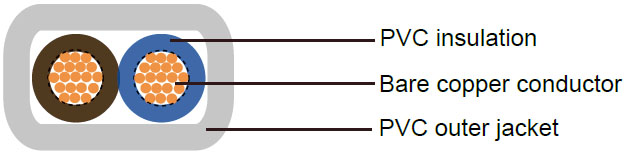

Cable Construction

2192Y to BS 6500 2192Y - British Standard Industrial Cables
Bare copper fine wire conductor
Stranding to BS 6360 Class 5 or IEC 60228 Class 5
PVC core insulation TI2 to BS 7655
PVC outer jacket TM2 to BS 7655

Core Identification

2 Cores Blue, Brown

Technical Characteristics

Working voltage 300/300 volts
Test voltage 2000 volts
Flexing bending radius 7.5xOverall diameter
Static bending radius 4xOverall diameter
Flexing temperature -5 oC to +70 oC
Static temperature -40 oC to +70 oC
Short circuit temperature +160 oC
Flame retardant IEC 60332.1
Insulation resistance 20 MΩxkm

Cable Parameter

AWG (No of Strands/Strand Diameter) No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal
Copper
Weight
Nominal Weight
#xmm^2 mm mm mm kg/km kg/km
2192Y
20(16/32) 2x0.50 0.5 0.6 3.2x5.2 9.7 32
18(24/32) 2x0.75 0.5 0.6 3.4x5.6 14.4 35
