6381Y to BS 6004 and 6346
Application and Description
These cables are designed for DC power supplies on Telecom equipment and power applications where flexibility is required.
Cable Construction

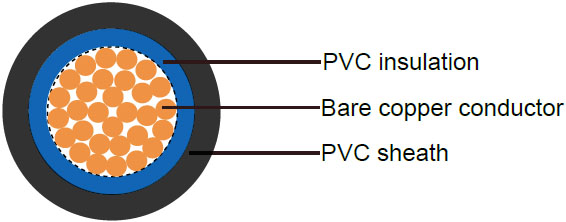

| Bare copper conductor |
| Stranding to BS6360 Class 5 or IEC60228 Class 5 |
| PVC insulation Type TI1 to BS7655 |
| PVC sheath Type TM1 to BS7655 |
| oxygen index> 30% |
| Meets requirements for flammability as required by BT specification M231 |
Core Identification
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
| Working voltage |
1.0mm^2 to 35mm^2 - 450/750V to BS 6004 |
| |
50mm^2 and above - 600/1000V to BS 6346 |
| Minimum bending radius |
up to 50 mm^2 : 3xoverall diameter |
| |
70mm^2 and above: - 4xoverall diameter |
| Operating temperature |
-15 oC to +70 oC |
| Insulation resistance |
10 MΩxkm |
| Flame retardant |
IEC 60332.1, BS4066 Part 1 |
Cable Parameter
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| #xmm^2 |
mm |
mm |
kg/km |
kg/km |
| 16(30/30) |
1x1.5 |
0.9 |
0.8 |
4.9 |
36 |
| 14(50/30) |
1x2.5 |
0.9 |
0.8 |
5.4 |
52 |
| 12(56/28) |
1x4 |
1 |
0.9 |
6.3 |
76 |
| 10(84/28) |
1x6 |
1.1 |
0.9 |
7.6 |
100 |
| 8(80/26) |
1x10 |
1.2 |
1 |
8.6 |
160 |
| 6(128/26) |
1x16 |
1.2 |
1 |
9.8 |
230 |
| 4(200/26) |
1x25 |
1.4 |
1.1 |
11.5 |
340 |
| 2(280/26) |
1x35 |
1.4 |
1.1 |
12.5 |
440 |
| 1(400/26) |
1x50 |
1.4 |
1.4 |
15.1 |
541 |
| 2/0(356/24) |
1x70 |
1.4 |
1.4 |
17.0 |
749 |
| 3/0(485/24) |
1x95 |
1.6 |
1.5 |
19.1 |
1000 |
| 4/0(614/24) |
1x120 |
1.6 |
1.8 |
21.6 |
1241 |
| 300MCM (765/24) |
1x150 |
1.8 |
1.8 |
23.4 |
1523 |
| 350MCM (944/24) |
1x185 |
2 |
1.8 |
25.5 |
1942 |
| 500MCM(1225/24) |
1x240 |
2.2 |
1.8 |
28.5 |
2514 |
| -(1525/24) |
1x300 |
2.4 |
2 |
31.2 |
3125 |
| -(2013/24) |
1x400 |
2.6 |
2.1 |
35.3 |
3967 |
| -(1769/23) |
1x500 |
2.8 |
2.2 |
38.8 |
5063 |
| -(2257/23) |
1x630 |
2.8 |
2.4 |
43.8 |
6491 |
