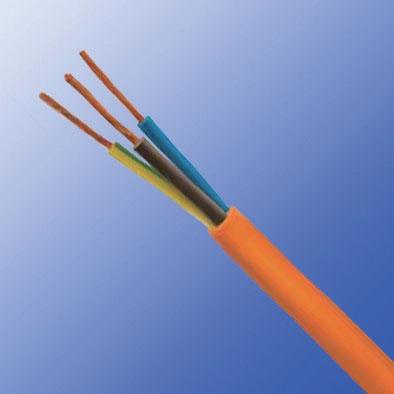

(H)03 Z1Z1-F/(H)05 Z1Z1-F

Application and Description

These cables may be used when halogen-free, low smoke and corrosive gas properties are required in case of fire. For moderate demands in the house, kitchen and office, for house equipment in damp rooms (for example: washing machines, dryers and refrigerators).

Suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation.

Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial or agricultural buildings, connection of electrical power tools.

Standard and Approval

  • NF C 32-201-14
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

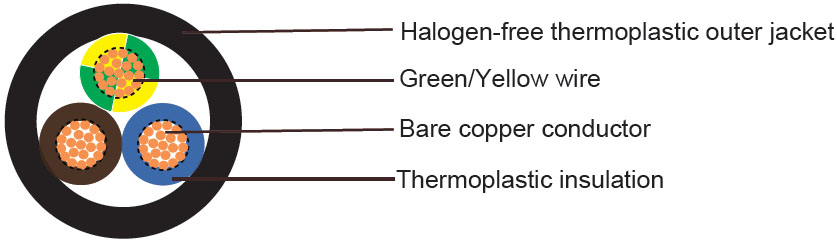

Cable Construction

(H)03 Z1Z1-F (H)05 Z1Z1-F
Fine bare copper strands
Strands to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383
Thermoplastic TI6 core insulation
Color code VDE-0293-308
Green-yellow grounding (3 conductors and above)
Halogen-fee thermoplastic TM7 outer jacket
Black (RAL 9005) or White (RAL 9003)

Technical Characteristics

Working voltage 300/300 volts(H03Z1Z1-F), 300/500 volts(H05Z1Z1-F)
Test voltage 2000 volts(H03Z1Z1-F), 2500 volts(H05Z1Z1-F)
Flexing bending radius 7.5 x O
Fixed bending radius 4.0 x O
Flexing Temperature -5oC to +70oC
Fixed Temperature -40oC to +70oC
Short circuit temperature +160o C
Insulation resistance 20 MΩ x km
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test flame-retardant acc. to EN 50265-2-1, NF C 32-070

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
  # x mm^2 mm mm mm kg/km kg/km
(H)03 Z1Z1-F
20(16/32) 2 x 0. 5 0.5 0.6 5.0 9.6 39
20(16/32) 3 x 0. 5 0.5 0.6 5.3 14.4 46
20(16/32) 4 x 0. 5 0.5 0.6 5.8 19.2 56
18(24/32) 2 x 0.75 0.5 0.6 5.4 14.4 47
18(24/32) 3 x 0.75 0.5 0.6 5.7 21.6 55
18(24/32) 4 x 0.75 0.5 0.6 6.3 29.0 69
(H)05 Z1Z1-F
18(24/32) 2 x 0.75 0.6 0.8 6.2 14.4 58
18(24/32) 3 x 0.75 0..7 0.8 6.6 21.6 68
18(24/32) 4 x 0.75 0.8 0.8 7.1 29 81
18(24/32) 5 x 0.75 0.8 0.9 8 36 102
17(32/32) 2 x 1 0.6 0.8 6.6 19 67
17(32/32) 3 x 1 0.8 0.8 6.9 29 81
17(32/32) 4 x 1 0.8 0.9 7.7 38 101
17(32/32) 5 x 1 0.8 0.9 8.4 48 107
16(30/30) 2 x 1.5 0.7 0.8 7.4 29 87
16(30/30) 3 x 1.5 0.8 0.9 8.1 43 109
16(30/30) 4 x 1.5 0.8 1.0 9 58 117
16(30/30) 5 x 1.5 0.8 1.1 10 72 169
14(50/30) 2 x 2.5 0.8 1.0 9.3 48 138
14(50/30) 3 x 2.5 1.0 1.1 10.1 72 172
14(50/30) 4 x 2.5 1.0 1.1 11 96 210
14(50/30) 5 x 2.5 1.0 1.2 12.3 120 260
12(56/28) 2 x 4 0.8 1.1 10.6 76.8 190
12(56/28) 3 x 4 1.0 1.2 11.5 115.2 242
12(56/28) 4 x 4 1.0 1.4 12.5 153.6 298
12(56/28) 5 x 4 1.0 1.4 14.1 192 371
