H03V2V2-F/H03V2V2H2-F

Application and Description

These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools.

The maximum conductor temperature in normal use:90°C.While high temperature use, skin contact must be avoided.

Standard and Approval

  • NF C 32-201-12

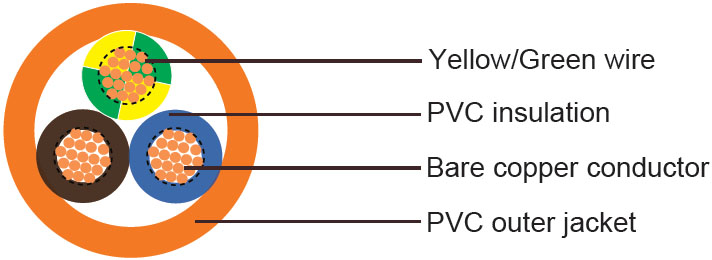

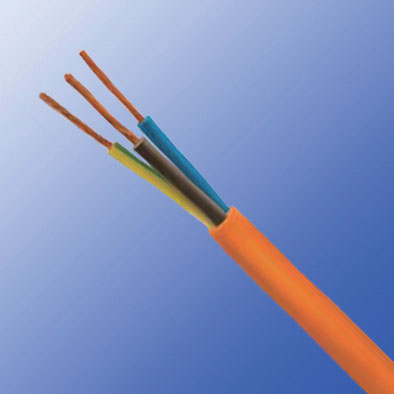

Cable Construction

H03V2V2-F H03V2V2-F
Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T13 to VDE-0281 Part 1
Color coded to VDE-0293-308
PVC outer jacket TM3
H03V2V2H2-F H03V2V2H2-F

Technical Characteristics

Working voltage 300/300 volts
Test voltage 3000 volts
Flexing bending radius 15 x O
Static bending radius 4 x O
Flexing temperature +5oC to +90oC
Static temperature -40oC to +90oC
Short circuit temperature +160oC
Flame retardant NF C 32-070
Insulation resistance 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
  # x mm^2 mm mm mm kg/km kg/km
H03V2V2-F
20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72
H03V2V2H2-F
20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35
