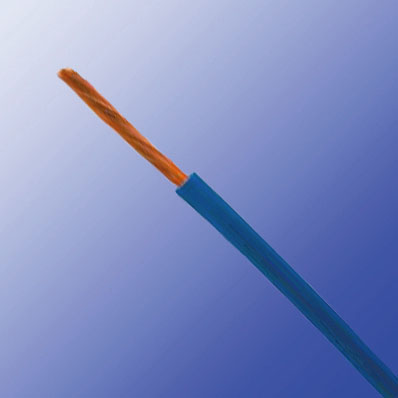

H05V-R/H07V-R

Application and Description

These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

Standard and Approval

  • <HAR> HD 21.3 S3
  • BS 6004
  • VDE-0281 Part-3
  • CEI 20-20/3
  • CEI 20-35 (EN60332-1)
  • CEI 20-52
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

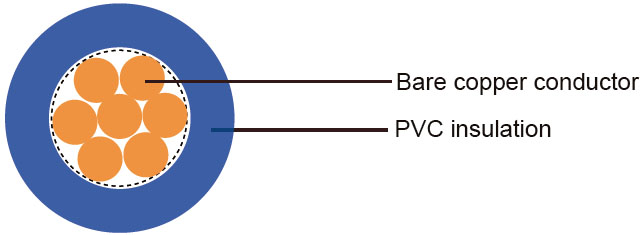

Cable Construction

H05V-R H05V-R/H07V-R - Harmonized Code Industrial Cables
Bare copper solid/strands conductor
Strands to VDE-0295 Class-2, IEC 60228 Cl-2
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart

Technical Characteristics

Working voltage 300/500 volts(H05V-R), 450/750 volts(H07V-R)
Test voltage 2000 volts(H05V-R), 2500 volts(H07V-R)
Flexing bending radius 15 x O
Static bending radius 15 x O
Flexing temperature -5 oC to +70 oC
Static temperature -30 oC to +80 oC
Short circuit temperature +160 oC
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm kg/km kg/km
H05V-R
20(7/29) 1 x 0.5 0.6 2.2 4.8 9
18(7/27) 1 x 0.75 0.6 2.4 7.2 12
17(7/26) 1 x 1 0.6 2.6 9.6 15
H07V-R
16(7/24) 1 x 1.5 0.7 3.0 14.4 23
14(7/22) 1 x 2.5 0.8 3.6 24 35
12(7/20) 1 x 4 0.8 4.2 39 51
10(7/18) 1 x 6 0.8 4.7 58 71
8(7/16) 1 x 10 1 6.1 96 120
6(7/14) 1 x 16 1 7.2 154 170
4(7/12) 1 x 25 1.2 8.4 240 260
2(7/10) 1 x 35 1.2 9.5 336 350
1(19/13) 1 x 50 1.4 11.3 480 480
2/0(19/11) 1 x 70 1,4 12.6 672 680
3/0(19/10) 1 x 95 1,6 14.7 912 930
4/0(37/12) 1 x 120 1,6 16.2 1152 1160
300MCM(37/11) 1 x 150 1,8 18.1 1440 1430
350MCM(37/10) 1 x 185 2,0 20.2 1776 1780
500MCM(61/11) 1 x 240 2,2 22.9 2304 2360
  1 x 300 2.4 24.5   2940
  1 x 400 2.6 27.5   3740
