H03RT-H

Application and Description

These cables are suitable for power connecting wire and complete lines between indoor household appliances, generally used for electric iron or electric saucepan.Not suitable for outdoor use nor power supply to electrical tools.Ozone, oxygen, UV rays and heat resistant.

Standard and Approval

  • CEI 20-19/14
  • HD22.14
  • ROHS compliant

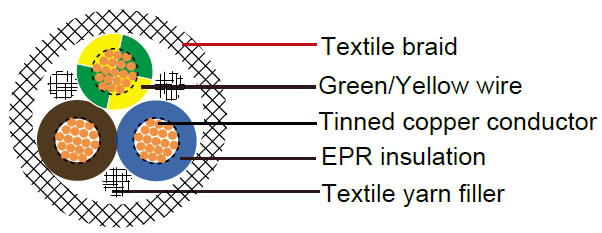

Cable Construction

H03RT-H H03RT-H
Flexible bare or tinned copper strand conductor acc. to DIN VDE 0295 class 5. IEC 60228 class 5
EPR insulation type E14 of HD22.1
Color coded to VDE 0293-308/HD 308 / UNE 21089-1(3 conductors and above with yellow/green wire)
Textile yarn filler
Textile braid of HD22.1

Technical Characteristics

Working voltage 300/300 V
Test voltage 2000V
Minimum bending radius 10× cable diameter
Temperature range - 25℃ to + 60℃
Short circuit temperature 200℃

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Weight
  # x mm^2 mm mm kg/Km
18(24/32) 2×0.75 0.80 6.30±0.20 36
17(32/32) 2×1.0 0.80 6.80±0.20 52
16(30/30) 2×1.5 0.80 7.20±0.20 42
18(24/32) 3×0.75 0.80 6.80±0.20 60
17(32/32) 3×1.0 0.80 7.20±0.20 54
16(30/30) 3×1.5 0.80 7.80±0.20 74
