H07V-K

Application and Description

These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits. These are not allowed to install for direct laying on cable trays, channel or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nomnal voltage up to 1000 V alternating current or up to 750 V direct current against earth.

Standard and Approval

  • CEI 20-20
  • CEI 20-52
  • HD 21.3 S3
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

Cable Construction

H07V-K H07V-K

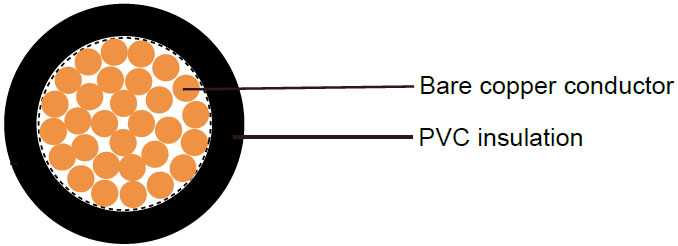

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart

Technical Characteristics

Working voltage 450/750 volts
Test voltage 2500 volts
Flexing bending radius 12.5x O
Static bending radius 12.5 x O
Flexing temperature -5o C to +70o C
Static temperature -30o C to +80o C
Short circuit temperature +160o C
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
  # x mm^2 mm mm kg/Km kg/Km
16 (30/30) 1 x 1.5 0,7 3.1 14.4 20
14 (50/30) 1 x 2.5 0,8 3.6 24.0 31
12 (56/28) 1 x 4 0,8 4.3 38.0 48
10 (84/28) 1 x 6 0,8 4.9 58.0 69
8 (80/26) 1 x 10 1,0 6.4 96.0 121
6 (128/26) 1 x 16 1,0 8.1 154.0 211
4 (200/26) 1 x 25 1,2 9.8 240 303
2 (280/26) 1 x 35 1,2 11.1 336 417
1 (400/26) 1 x 50 1,4 13.1 480 539
2/0 (356/24) 1 x 70 1,4 15.5 672 730
3/0 (485/24) 1 x 95 1,6 17.2 912 900
4/0 (614/24) 1 x 120 1,6 19.7 1152 1135
300 MCM (765/24) 1 x 150 1,8 21.3 1440 1410
350 MCM (944/24) 1 x 185 2,0 23.4 1776 1845
500 MCM (1225/24) 1 x 240 2,2 27.1 2304 2270
