EE/CE

Application and Description

For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

Name Code

E : Polyethylene

C : Cross-linked polyethylene

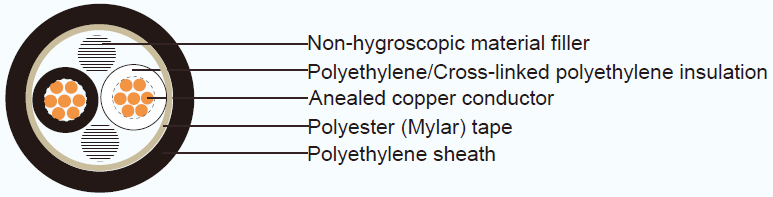

Cable Construction

EE/CE - Industrial Cables to JIS Standard
Conductor Circular, circuar or segmental compacted stranded annealed copper wires
Seperator A proper separator may be applied to a conductor
Insulation Polyethylene/Cross-linked polyethylene
Color 2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
Filler Non-hygroscopic material(optional)
Binding tape Polyester (Mylar) tape (optional)
Sheath Polyethylene (PE), Black color

Technical Characteristics

Maximum conductor temperature : 90ºC

Circuit voltage not exceeding : 600 volts

Cable Parameter

No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20ºC Test Voltage Cable weight (approx.)
mm² mm mm mm mm Ohm / km V kg/km
1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 50
3.5 7/0.8 2.4 0.8 1.5 7.0 5.2 1500 65
5.5 7/1.0 3.0 1.0 1.5 8.0 3.33 1500 90
8 7/1.2 3.6 1.0 1.5 8.6 2.31 1500 120
8 compacted 3.4 1.0 1.5 8.4 2.29 1500 120
14 7/1.6 4.8 1.0 1.5 9.8 1.31 2000 185
14 compactcd 4.4 1.0 1.5 9.4 1.30 2000 180
22 7/2.0 6.0 1.2 1.5 11.5 0.824 2000 275
22 compacted 5.5 1.2 1.5 11.0 0.832 2000 265
38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 430
38 compacted 7.3 1.2 1.5 13.0 0.481 2500 430
60 19/2.0 10.0 1.5 1.5 16.0 0.303 2500 665
60 compacted 9.3 1.5 1.5 15.5 0.305 2500 655
100 19/2.6 13.0 2.0 1.5 20.0 0.180 2500 1100
100 compacted 12.0 2.0 1.5 19.0 0.183 2500 1080
150 37/2.3 16.1 2.0 1.5 24.5 0.118 3000 1630
150 compacted 14.7 2.0 1.5 22.5 0.122 3000 1560
200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2080
200 compacted 17.0 2.5 1.7 26.5 0.0915 3000 2090
250 61/2.3 20.7 2.5 1.8 30.0 0.0722 3000 2660
250 compacted 19.0 2.5 1.8 28.5 0.0739 3000 2600
325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3360
325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3330
400 61/2.9 26.1 2.5 2.0 34.5 0.0373 3000 4l30
400 compacted 24.1 2.5 2.0 34.5 0.0369 3000 4060
500 61/3.2 28.8 3.0 2.1 40.0 0.0304 3500 5060
500 compacted 26.9 3.0 2.1 43.0 0.0308 3500 5080
600 91/2.9 31.9 3.0 2.3 41.0 0.0369 3500 6140
600 compacted 29.5 3.0 2.2 38.5 0.0369 3500 6050
800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 7980
800 compacted 34.0 3.5 2.5 47.5 0.0231 3500 8060
1 800 segmental
compacted		 34.0 3.5 2.5 47.5 0.0231 3500 8060
1000 127/3.2 41.6 3.5 2.6 54.0 0.0179 3500 10300
1000 compacted 38.0 3.5 2.6 51.5 0.0185 3500 9980
1000 segmental
compacted		 38.0 3.5 2.6 51.5 0.0187 3500 10100
2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 100
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 145
5.5 7/1.0 3.0 1.0 1.5 13.5 3.4 1500 210
8 7/1.2 3.6 1.0 1.5 15.0 2.36 1500 270
8 compacted 3.4 1.0 1.5 14.5 2.34 1500 260
14 7/1.6 4.8 1.0 1.5 17.5 1.33 2000 415
14 compactcd 4.4 1.0 1.5 16.5 1.34 2000 405
22 7/2.0 6.0 1.2 1.5 21.0 0.840 2000 620
22 compacted 5.5 1.2 1.5 19.5 0.849 2000 595
38 7/2.6 7.8 1.2 1.5 24.0 0.497 2500 975
38 compacted 7.3 1.2 1.5 24.0 0.491 2500 965
60 19/2.0 10.0 1.5 1.5 31.0 0.309 2500 1540
60 compacted 9.3 1.5 1.5 29.0 0.311 2500 1560
100 19/2.6 13.0 2.0 1.5 39.0 0.184 2500 2570
100 compacted 12.0 2.0 1.5 37.0 0.187 2500 2540
150 37/2.3 16.1 2.0 1.5 46.0 0.124 3000 3770
150 compacted 14.7 2.0 1.5 43.0 0.120 3000 3570
200 37/2.6 18.2 2.5 1.7 53.0 0.0940 3000 4860
200 compacted 17.0 2.5 1.7 50.0 0.0933 3000 4600
250 61/2.3 20.7 2.5 1.8 58.0 0.0736 3000 6180
250 compacted 19.0 2.5 1.8 54.0 0.0754 3000 5930
325 61/2.6 23.4 2.5 1.9 64.0 0.0576 3000 7760
325 compacted 21.7 2.5 1.9 60.0 0.0579 3000 7570



3

 2 7/0.6 1.8 0.8 1.5 11.0 9.42 1500 130
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 185
5.5 7/1.0 3.0 1.0 1.5 14.5 3.4 1500 270
8 7/1.2 3.6 1.0 1.5 16.0 2.36 1500 355
8 compacted 3.4 1.0 1.5 15.5 2.34 1500 350
14 7/1.6 4.8 1.0 1.5 18.5 1.33 2000 560
3 14 compactcd 4.4 1.0 1.5 17.5 1.34 2000 550
22 7/2.0 6.0 1.2 1.5 22.0 0.840 2000 845
22 compacted 5.5 1.2 1.5 21.0 0.849 2000 820
38 7/2.6 7.8 1.2 1.5 26.0 0.497 2500 I350
38 compacted 7.3 1.2 1.5 25.0 0.491 2500 1350
60 19/2.0 10.0 1.5 1.5 33.0 0.309 2500 2 130
60 compacted 9.3 1.5 1.5 31.0 0.311 2500 2 090
100 19/2.6 13.0 2.0 1.5 42.0 0.184 2500 3 580
100 compacted 12.0 2.0 1.5 40.0 0.187 2500 3460
150 37/2.3 16.1 2.0 1.5 49.0 0.124 3000 5270
150 compacted 14.7 2.0 1.5 46.0 0.120 3000 5030
200 37/2.6 18.2 2.5 1.7 57.0 0.0940 3000 6790
200 compacted 17.0 2.5 1.7 54.0 0.0933 3000 6740
250 61/2.3 20.7 2.5 1.8 62.0 0.0736 3000 8670
250 compacted 19.0 2.5 1.8 58.0 0.0754 3000 8360
325 61/2.6 23.4 2.5 1.9 94.0 0.0576 3000 11000
325 compacted 21.7 2.5 1.9 65.0 0.0579 3000 10700
4 2.5 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 160
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 230
5.5 7/1.0 3.0 1.0 1.5 16.0 3.4 1500 340
8 7/1.2 3.6 1.0 1.5 17.0 2.36 1500 450
8 compacted 3.4 1.0 1.5 16.5 2.34 1500 480
14 7/1.6 4.8 1.0 1.5 20.0 1.33 2000 765
14 compactcd 4.4 1.0 1.5 19.0 1.34 2000 705
22 7/2.0 6.0 1.2 1.5 24 0.840 2000 1100
22 compacted 5.5 1.2 1.5 23 0.849 2000 1070
38 7/2.6 7.8 1.2 1.5 29 0.497 2500 1760
38 compacted 7.3 1.2 1.5 28 0.491 2500 1760
60 19/2.0 10.0 1.5 1.5 37 0.309 2500 2790
60 compacted 9.3 1.5 1.5 35 0.311 2500 2730
100 19/2.6 13.0 2.0 1.5 47 0.184 2500 4680
100 compacted 12.0 2.0 1.5 44 0.187 2500 4530
150 37/2.3 16.1 2.0 1.5 55 0.124 3000 6900
4 150 compacted 14.7 2.0 1.5 SI 0.120 3000 6 600
200 37/2.6 18.2 2.5 1.7 63 0.0940 3000 8900
200 compacted 17.0 2.5 1.7 60 0.0933 3000 8850
250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11400
250 compacted 19.0 2.5 1.8 65 0.0754 3000 11000
325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14400
325 compacted 21.7 2.5 1.9 72 0.0579 3000 14100
