EE/F(EM-EE) CE/F(EM-CE)

Application and Description

For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

Name Code

E : Polyethylene

C : Cross-linked polyethylene

F : Flame retardant polyethylene

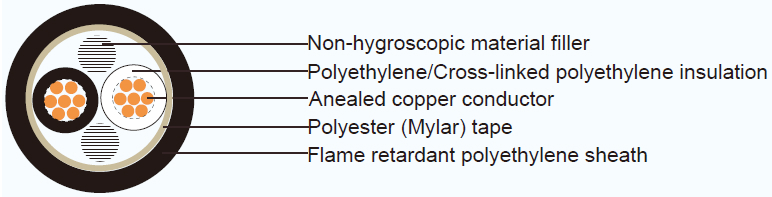

Cable Construction

EE/F(EM-EE) CE/F(EM-CE) - Industrial Cables to JIS Standard
Conductor Circular, circuar or segmental compacted stranded annealed copper wires
Seperator A proper separator may be applied to a conductor
Insulation Polyethylene/Cross-linked polyethylene
Color 2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
Filler Non-hygroscopic material(optional)
Binding tape Polyester (Mylar) tape (optional)
Sheath Flame retardant polyethylene, Black color

Technical Characteristics

Maximum conductor temperature : 90ºC

Circuit voltage not exceeding : 600 volts

Cable Parameter

No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20ºC Test Voltage Cable weight (approx.)
mm² mm mm mm mm Ohm / km V kg/km
1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 55
3.5 7/0.8 2.4 0.8 1.5 7.0 5.2 1500 75
5.5 7/1.0 3.0 1.0 1.5 8.0 3.33 1500 105
8 7/1.2 3.6 1.0 1.5 8.6 2.31 1500 130
8 compacted 3.4 1.0 1.5 8.4 2.29 1500 130
14 7/1.6 4.8 1.0 1.5 9.8 1.31 2000 200
14 compactcd 4.4 1.0 1.5 9.4 1.30 2000 195
22 7/2.0 6.0 1.2 1.5 11.5 0.824 2000 290
22 compacted 5.5 1.2 1.5 11.0 0.832 2000 280
38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 450
38 compacted 7.3 1.2 1.5 13.0 0.481 2500 445
60 19/2.0 10.0 1.5 1.5 16.0 0.303 2500 690
60 compacted 9.3 1.5 1.5 15.5 0.305 2500 675
100 19/2.6 13.0 2.0 1.5 20.0 0.180 2500 1130
100 compacted 12.0 2.0 1.5 19.0 0.183 2500 1100
150 37/2.3 16.1 2.0 1.5 24.5 0.118 3000 1660
150 compacted 14.7 2.0 1.5 22.5 0.122 3000 1590
200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2120
200 compacted 17.0 2.5 1.7 26.5 0.0915 3000 2130
250 61/2.3 20.7 2.5 1.8 30.0 0.0722 3000 2710
250 compacted 19.0 2.5 1.8 28.5 0.0739 3000 2640
325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3420
325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3380
400 61/2.9 26.1 2.5 2.0 34.5 0.0373 3000 4200
400 compacted 24.1 2.5 2.0 34.5 0.0369 3000 4130
500 61/3.2 28.8 3.0 2.1 40.0 0.0304 3500 5150
500 compacted 26.9 3.0 2.1 43.0 0.0308 3500 5160
600 91/2.9 31.9 3.0 2.3 41.0 0.0369 3500 6230
600 compacted 29.5 3.0 2.2 38.5 0.0369 3500 6130
800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 8100
800 compacted 34.0 3.5 2.5 47.5 0.0231 3500 8150
1 800 segmental
compacted		 34.0 3.5 2.5 47.5 0.0231 3500 8150
1000 127/3.2 41.6 3.5 2.6 54.0 0.0179 3500 10500
1000 compacted 38.0 3.5 2.6 51.5 0.0185 3500 10200
1000 segmental
compacted		 38.0 3.5 2.6 51.5 0.0187 3500 10100
2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 115
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 160
5.5 7/1.0 3.0 1.0 1.5 13.5 3.4 1500 225
8 7/1.2 3.6 1.0 1.5 15.0 2.36 1500 290
8 compacted 3.4 1.0 1.5 14.5 2.34 1500 280
14 7/1.6 4.8 1.0 1.5 17.5 1.33 2000 440
14 compactcd 4.4 1.0 1.5 16.5 1.34 2000 425
22 7/2.0 6.0 1.2 1.5 21.0 0.840 2000 650
22 compacted 5.5 1.2 1.5 19.5 0.849 2000 620
38 7/2.6 7.8 1.2 1.5 24.0 0.497 2500 1010
38 compacted 7.3 1.2 1.5 24.0 0.491 2500 990
60 19/2.0 10.0 1.5 1.5 31.0 0.309 2500 1590
60 compacted 9.3 1.5 1.5 29.0 0.311 2500 1540
100 19/2.6 13.0 2.0 1.5 39.0 0.184 2500 2650
100 compacted 12.0 2.0 1.5 37.0 0.187 2500 2540
150 37/2.3 16.1 2.0 1.5 46.0 0.124 3000 3860
150 compacted 14.7 2.0 1.5 43.0 0.120 3000 3660
200 37/2.6 18.2 2.5 1.7 53.0 0.0940 3000 4980
200 compacted 17.0 2.5 1.7 50.0 0.0933 3000 4910
250 61/2.3 20.7 2.5 1.8 58.0 0.0736 3000 6320
250 compacted 19.0 2.5 1.8 54.0 0.0754 3000 6040
325 61/2.6 23.4 2.5 1.9 64.0 0.0576 3000 7930
325 compacted 21.7 2.5 1.9 60.0 0.0579 3000 7730
3 2 7/0.6 1.8 0.8 1.5 11.0 9.42 1500 140
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 200
5.5 7/1.0 3.0 1.0 1.5 14.5 3.4 1500 290
8 7/1.2 3.6 1.0 1.5 16.0 2.36 1500 380
8 compacted 3.4 1.0 1.5 15.5 2.34 1500 370
14 7/1.6 4.8 1.0 1.5 18.5 1.33 2000 585
3 14 compactcd 4.4 1.0 1.5 17.5 1.34 2000 570
22 7/2.0 6.0 1.2 1.5 22.0 0.840 2000 875
22 compacted 5.5 1.2 1.5 21.0 0.849 2000 845
38 7/2.6 7.8 1.2 1.5 26.0 0.497 2500 I 390
38 compacted 7.3 1.2 1.5 25.0 0.491 2500 I380
60 19/2.0 10.0 1.5 1.5 33.0 0.309 2500 2180
60 compacted 9.3 1.5 1.5 31.0 0.311 2500 2140
100 19/2.6 13.0 2.0 1.5 42.0 0.184 2500 3670
100 compacted 12.0 2.0 1.5 40.0 0.187 2500 3540
150 37/2.3 16.1 2.0 1.5 49.0 0.124 3000 5390
150 compacted 14.7 2.0 1.5 46.0 0.120 3000 5120
200 37/2.6 18.2 2.5 1.7 57.0 0.0940 3000 6920
200 compacted 17.0 2.5 1.7 54.0 0.0933 3000 6860
250 61/2.3 20.7 2.5 1.8 62.0 0.0736 3000 8810
250 compacted 19.0 2.5 1.8 58.0 0.0754 3000 8500
325 61/2.6 23.4 2.5 1.9 94.0 0.0576 3000 11200
325 compacted 21.7 2.5 1.9 65.0 0.0579 3000 10900
4 2.5 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 170
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 250
5.5 7/1.0 3.0 1.0 1.5 16.0 3.4 1500 360
8 7/1.2 3.6 1.0 1.5 17.0 2.36 1500 475
8 compacted 3.4 1.0 1.5 16.5 2.34 1500 465
14 7/1.6 4.8 1.0 1.5 20.0 1.33 2000 750
14 compactcd 4.4 1.0 1.5 19.0 1.34 2000 730
22 7/2.0 6.0 1.2 1.5 24 0.840 2000 1140
22 compacted 5.5 1.2 1.5 23 0.849 2000 1100
38 7/2.6 7.8 1.2 1.5 29 0.497 2500 1810
38 compacted 7.3 1.2 1.5 28 0.491 2500 1800
60 19/2.0 10.0 1.5 1.5 37 0.309 2500 2860
60 compacted 9.3 1.5 1.5 35 0.311 2500 2790
100 19/2.6 13.0 2.0 1.5 47 0.184 2500 4790
100 compacted 12.0 2.0 1.5 44 0.187 2500 4630
150 37/2.3 16.1 2.0 1.5 55 0.124 3000 7050
4 150 compacted 14.7 2.0 1.5 SI 0.120 3000 6710
200 37/2.6 18.2 2.5 1.7 63 0.0940 3000 9070
200 compacted 17.0 2.5 1.7 60 0.0933 3000 8990
250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11600
250 compacted 19.0 2.5 1.8 65 0.0754 3000 11200
325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14600
325 compacted 21.7 2.5 1.9 72 0.0579 3000 14300
