EEF/F(EM-EEF) CEF/F(EM-CEF)
Application and Description
For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.
Name Code
E : Polyethylene
C : Cross-linked polyethylene
F : Flat type
F : Flame retardant polyethylene

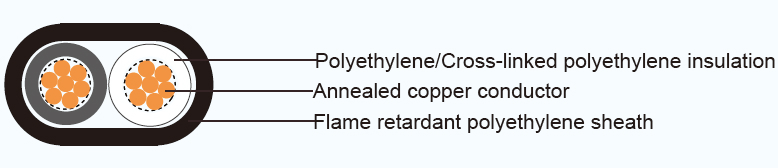

Cable Construction
 |
| Conductor | Solid or circuar stranded annealed copper wires |
| Seperator | A proper separator may be applied to a conductor |
| Insulation | Polyethylene/Cross-linked polyethylene |
| Color | 2 cores- Black and white |
| 3 cores- Black, white and red | |
| Filler | Non-hygroscopic material(optional) |
| Binding tape | Polyester (Mylar) tape (optional) |
| Sheath | Flame retardant polyethylene, Black color |
Technical Characteristics
Maximum conductor temperature : 90ºC
Circuit voltage not exceeding : 600 volts
Cable Parameter
| No. of cores | Nominal sectional area | No. of wire | Diameter of Conductor (approx.) | Thickness of insulation | Thickness of sheath | Overall diameter (approx.) | Maximum DC. resistance of Cdr. at 20ºC | Test Voltage | Cable weight (approx.) |
|---|---|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | Ohm / km | V | kg/km | ||
| 2 | 1.6 | Solid | 1.6 | 0.8 | 1.5 | 6.2x9.4 | 8.92 | 1500 | 95 |
| 2 | Solid | 2 | 0.8 | 1.5 | 6.6x10.5 | 5.65 | 1500 | 120 | |
| 2.6 | Solid | 2.6 | 1 | 1.5 | 7.6 x12.5 | 3.35 | 1500 | 180 | |
| 3.2 | Solid | 3.2 | 1 | 1.5 | 8.2x13.5 | 2.21 | 1500 | 240 | |
| 2 | 7/0.6 | l.8 | 0.8 | 1.5 | 6.4 x9.8 | 9.24 | 1500 | 100 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 7.0x1 1.0 | 5.2 | 1500 | 140 | |
| 5.5 | 7/ 1.0 | 3 | 1 | 1.5 | 8.0xI3.0 | 3.33 | 1500 | 195 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 8.6 x14.5 | 2.31 | 1500 | 250 | |
| 3 | 1.6 | Solid | 1.6 | 0.8 | 1.5 | 6.2 x13.0 | 8.92 | 1500 | 135 |
| 2 | Solid | 2 | 0.8 | 1.5 | 6.6x14.0 | 5.65 | 1500 | 175 | |
| 2.6 | Solid | 2.6 | 1 | 1.5 | 7.6x17.0 | 3.35 | 1500 | 265 | |
| 3.2 | Solid | 3.2 | 1 | 1.5 | 8.2 x19 | 2.21 | 1500 | 355 | |
| 2 | 7/0.6 | l.8 | 0.8 | 1.5 | 6.4 x13.5 | 9.24 | 1500 | 140 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 7.0x15.0 | 5.2 | 1500 | 200 | |
| 5.5 | 7/ 1.0 | 3 | 1 | 1.5 | 8.0x18.0 | 3.33 | 1500 | 285 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 8.6x20 | 2.31 | 1500 | 370 |
