EV/CV

Application and Description

For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

Name Code

E : Polyethylene

C : Cross-linked polyethylene

V : Vinyl

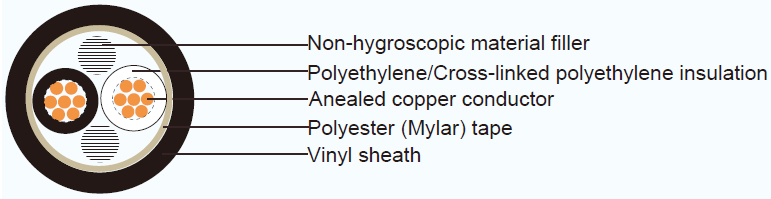

Cable Construction

EV/CV - Industrial Cables to JIS Standard
Conductor Circular, circuar or segmental compacted stranded annealed copper wires
Seperator A proper separator may be applied to a conductor
Insulation Polyethylene/Cross-linked polyethylene
Color 2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green4
Filler Non-hygroscopic material(optional)
Binding tape Polyester (Mylar) tape (optional)
Sheath Vinyl, Black color

Technical Characteristics

Maximum conductor temperature : 90ºC

Circuit voltage not exceeding : 600 volts

Cable Parameter

No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20ºC Test Voltage Cable weight (approx.)
mm² mm mm mm mm Ohm / km V kg/km
1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 60
3.5 7/0.8 2.4 0.8 1.5 7 5.2 1500 80
5.5 7/1.0 3 1 1.5 8 3.33 1500 115
8 7/1.2 3.6 1 1.5 8.6 2.31 1500 135
8 compacted 3.4 1 1.5 8.4 2.29 1500 135
14 7/1.6 4.8 1 1.5 9.8 1.31 2000 205
14 compacted 4.4 1 1.5 9.4 1.3 2000 200
22 7/2.0 6 1.2 1.5 11.5 0.824 2000 300
22 compacted 5.5 1.2 1.5 11 0.832 2000 290
38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 460
38 compacted 7.3 1.2 1.5 13 0.481 2500 455
60 19/2.0 10 1.5 1.5 16 0.303 2500 700
60 compacted 9.3 1.5 1.5 15.5 0.305 2500 685
100 19/2.6 13 2 1.5 20 0.18 2500 1150
100 compacted 12 2 1.5 19 0.183 2500 1120
150 37/2.3 16.1 2 1.5 24.5 0.118 3000 1680
150 compacted 14.7 2 1.5 22.5 0.122 3000 1600
200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2150
200 compacted 17 2.5 1.7 26.5 0.0915 3000 2150
250 61/2.3 20.7 2.5 1.8 30 0.0722 3000 2740
250 compacted 19 2.5 1.8 28.5 0.0739 3000 2670
325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3450
325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3410
400 61/2.9 26.1 2.5 2 34.5 0.0373 3000 4230
400 compacted 24.1 2.5 2 34.5 0.0369 3000 4160
500 61/3.2 28.8 3 2.1 40 0.0304 3500 5190
1 500 compacted 26.9 3 2.1 43 0.0308 3500 5090
600 91/2.9 31.9 3 2.3 41 0.0369 3500 6280
600 compacted 29.5 3 2.2 38.5 0.0369 3500 6170
800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 8160
800 compacted 34 3.5 2.5 47.5 0.0231 3500 8220
800 segmental 34 3.5 2.5 47.5 0.0231 3500 8220
1000 127/3.2 41.6 3.5 2.6 54 0.0179 3500 10600
1000 compacted 38 3.5 2.6 51.5 0.0185 3500 10200
1000 segmental 38 3.5 2.6 51.5 0.0187 3500 10300
2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 120
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 165
5.5 7/1.0 3 1 1.5 13.5 3.4 1500 235
8 7/1.2 3.6 1 1.5 15 2.36 1500 300
8 compacted 3.4 1 1.5 14.5 2.34 1500 290
14 7/1.6 4.8 1 1.5 17.5 1.33 2000 450
14 compactcd 4.4 1 1.5 16.5 1.34 2000 435
22 7/2.0 6 1.2 1.5 21 0.84 2000 660
22 compacted 5.5 1.2 1.5 19.5 0.849 2000 635
38 7/2.6 7.8 1.2 1.5 24 0.497 2500 1030
38 compacted 7.3 1.2 1.5 24 0.491 2500 1020
60 19/2.0 10 1.5 1.5 31 0.309 2500 1620
60 compacted 9.3 1.5 1.5 29 0.311 2500 1570
100 19/2.6 13 2 1.5 39 0.184 2500 2690
100 compacted 12 2 1.5 37 0.187 2500 2580
150 37/2.3 16.1 2 1.5 46 0.124 3000 3920
150 compacted 14.7 2 1.5 43 0.12 3000 3710
200 37/2.6 18.2 2.5 1.7 53 0.094 3000 5060
200 compacted 17 2.5 1.7 50 0.0933 3000 4980
250 61/2.3 20.7 2.5 1.8 58 0.0736 3000 6420
250 compacted 19 2.5 1.8 54 0.0754 3000 6140
325 61/2.6 23.4 2.5 1.9 64 0.0576 3000 8040
325 compacted 21.7 2.5 1.9 60 0.0579 3000 7820
3 2 7/0.6 1.8 0.8 1.5 11 9.42 1500 150
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 210
5.5 7/1.0 3 1 1.5 14.5 3.4 1500 300
8 7/1.2 3.6 1 1.5 16 2.36 1500 385
8 compacted 3.4 1 1.5 15.5 2.34 1500 380
14 7/1.6 4.8 1 1.5 18.5 1.33 2000 600
14 compactcd 4.4 1 1.5 17.5 1.34 2000 585
22 7/2.0 6 1.2 1.5 22 0.84 2000 890
22 compacted 5.5 1.2 1.5 21 0.849 2000 860
38 7/2.6 7.8 1.2 1.5 26 0.497 2500 1410
38 compacted 7.3 1.2 1.5 25 0.491 2500 1410
60 19/2.0 10 1.5 1.5 33 0.309 2500 2220
60 compacted 9.3 1.5 1.5 31 0.311 2500 2170
100 19/2.6 13 2 1.5 42 0.184 2500 3710
100 compacted 12 2 1.5 40 0.187 2500 3580
150 37/2.3 16.1 2 1.5 49 0.124 3000 5440
150 compacted 14.7 2 1.5 46 0.12 3000 5180
200 37/2.6 18.2 2.5 1.7 57 0.094 3000 7071
200 compacted 17 2.5 1.7 54 0.0933 3000 6940
250 61/2.3 20.7 2.5 1.8 62 0.0736 3000 8940
250 compacted 19 2.5 1.8 58 0.0754 3000 8600
325 61/2.6 23.4 2.5 1.9 94 0.0576 3000 11300
325 compacted 21.7 2.5 1.9 65 0.0579 3000 11000
4 2.5 7/0.6 1.8 0.8 1.5 12 9.42 1500 180
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 260
5.5 7/1.0 3 1 1.5 16 3.4 1500 370
8 7/1.2 3.6 1 1.5 17 2.36 1500 485
8 compacted 3.4 1 1.5 16.5 2.34 1500 480
14 7/1.6 4.8 1 1.5 20 1.33 2000 765
14 compactcd 4.4 1 1.5 19 1.34 2000 745
22 7/2.0 6 1.2 1.5 24 0.84 2000 1160
22 compacted 5.5 1.2 1.5 23 0.849 2000 1120
38 7/2.6 7.8 1.2 1.5 29 0.497 2500 I840

4

 38 compacted 7.3 1.2 1.5 28 0.491 2500 I830
60 19/2.0 10 1.5 1.5 37 0.309 2500 2890
60 compacted 9.3 1.5 1.5 35 0.311 2500 2830
100 19/2.6 13 2 1.5 47 0.184 2500 4840
100 compacted 12 2 1.5 44 0.187 2500 4680
150 37/2.3 16.1 2 1.5 55 0.124 3000 7120
150 compacted 14.7 2 1.5 SI 0.12 3000 6790
200 37/2.6 18.2 2.5 1.7 63 0.094 3000 9170
200 compacted 17 2.5 1.7 60 0.0933 3000 9100
250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11700
250 compacted 19 2.5 1.8 65 0.0754 3000 11300
325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14800
325 compacted 21.7 2.5 1.9 72 0.0579 3000 14500
