KPEV/IPEV
Application and Description
The rated Votage is 300V and below. These cables are used for instrumentation for monitoring, data recoding and conveying information such as communication, telemetering, pressure, flow and indication lamps, etc.

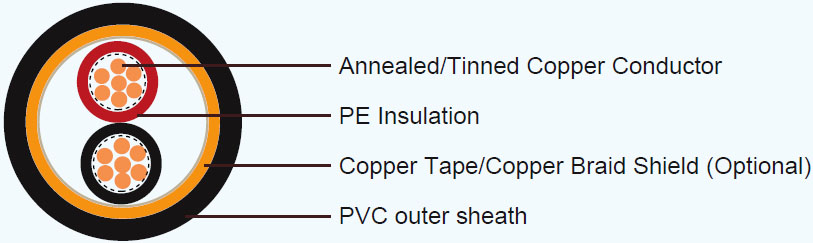

Cable Construction
| Conductor |
Solid and stranded annealed copper (K) or tinned copper (I), Sizes: 0.5 mm^2 up to 1.5 mm^2 |
| Insulation |
Polyethylene (PE) |
| Shield (optional) |
Copper tape (S) or copper wire braid (SB) |
| Sheath |
Polyvinyl chloride (PVC), white color |
Technical Characteristics
| Maximum conductor temperature 70°C |
| Circuit voltage not exceeding 600 volts |
| Test voltage 2000volts(JIS) / 3500 volts(IEC) |
Cable Parameter
| Part No. |
No. of pairs |
Nominal cross section area |
Number and diameter of wire |
Insulation thickness |
Sheath thickness |
Max overall diameter |
Cable weight |
| mm^2 |
No./mm |
mm |
mm |
mm |
kg/km |
| KPEV-S 1P0.75 |
1 |
0.75 |
7/0.37 |
0.5 |
1.5 |
7.9 |
80 |
| KPEV-S 3P1.5 |
3 |
1.5 |
7/0.52 |
0.5 |
1.5 |
13.5 |
210 |
| IPEV-S 1P0.75 |
1 |
0.75 |
7/0.37 |
0.5 |
1.5 |
7.9 |
80 |
| IPEV-S 2P0.75 |
2 |
0.75 |
7/0.37 |
0.5 |
1.5 |
11.0 |
108 |
| IPEV 1P0.75 |
1 |
0.75 |
7/0.37 |
0.5 |
1.5 |
7.4 |
72 |
