VC4V-K

Application and Description

These flexible shielded cables with braided copper wire and are resistant to mineral oils. For use inside buildings, especially for connecting parts of machines used for manufacturing, including machine tools.

Recommended in installations requiring electromagnetic protection to avoid the generation of parasite currents in other circuits. Easy to handle during installation and laying, they are rodent-proof.

Standard and Approval

  • UNE 21031-13
  • IEC 60332-1
  • IEC 60332-1
  • EN 50265
  • IEC 60502
  • IEC 60228

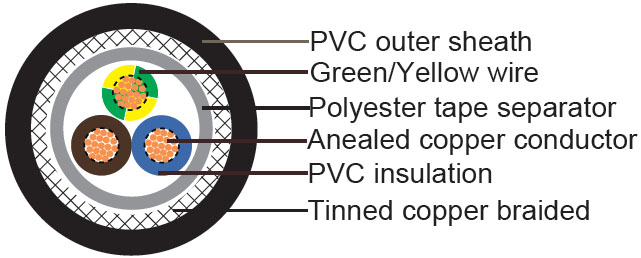

Cable Construction

  VC4V-K
Flexible annealed copper conductor.
Class 5 in accordance with IEC 60228.
Polyvinyl chloride (PVC).
Color coded to HD 308.
Polyester tape separator.
High coverage tinned copper braided screen.
Acrylic polyvinyl chloride (flexible PVC).

Technical Characteristics

Working voltage 300/500vots 600/1000 volts
Test voltage 2500 volts(600/1000 volts)
Minimum bending radius 5 x O
Working temperature -15oC to +70oC
Short circuit temperature +160oC
Insulation resistance 20 MΩ x km
Flame retardant IEC 60332-1, EN 50265-2-1
Non-flame propagating IEC 60332-3, EN 50266-2

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
  # x mm^2 mm kg/km
300/500V
17(32/32) 2x1 7.7 76
16(30/30) 2x1.5 8.6 95
14(50/30) 2x2.5 9.8 121
17(32/32) 3G1 8.1 88
16(30/30) 3G1.5 9.3 124
14(50/30) 3G2.5 10.9 174
17(32/32) 4G1 8.8 114
16(30/30) 4G1.5 9.8 138
14(50/30) 4G2.5 11.8 213
17(32/32) 5G1 9.6 140
16(30/30) 5G1.5 11.1 185
17(32/32) 6G1 10.8 172
16(30/30) 6G1.5 12.2 224
17(32/32) 8G1 12 218
16(30/30) 8G1.5 14 288
17(32/32) 10G1 13.1 239
17(32/32) 12G1 13.4 271
16(30/30) 12G1.5 15.7 358
17(32/32) 16G1 14.9 350
17(32/32) 19G1 15.9 402
16(30/30) 24G1.5 22 723
600/1000V
14(50/30) 2x2.5 9.6 121
14(50/30) 3G2.5 10.8 162
14(50/30) 4G2.5 11.7 204
14(50/30) 5G2.5 12.8 243
14(50/30) 7G2.5 13.8 305
12(56/28) 4G4.0 12.6 272
10(84/28) 4G6.0 14.4 358
8(80/26) 4G10 17.5 570
6(128/26) 4G16 20.1 814
4(200/26) 4G25 24.5 1224
2(280/26) 4G35 28.2 1654
1(400/26) 4G50 32.3 2249
2/0(356/24) 4G70 37.5 3102
3/0(485/24) 4G95 42.5 3931
